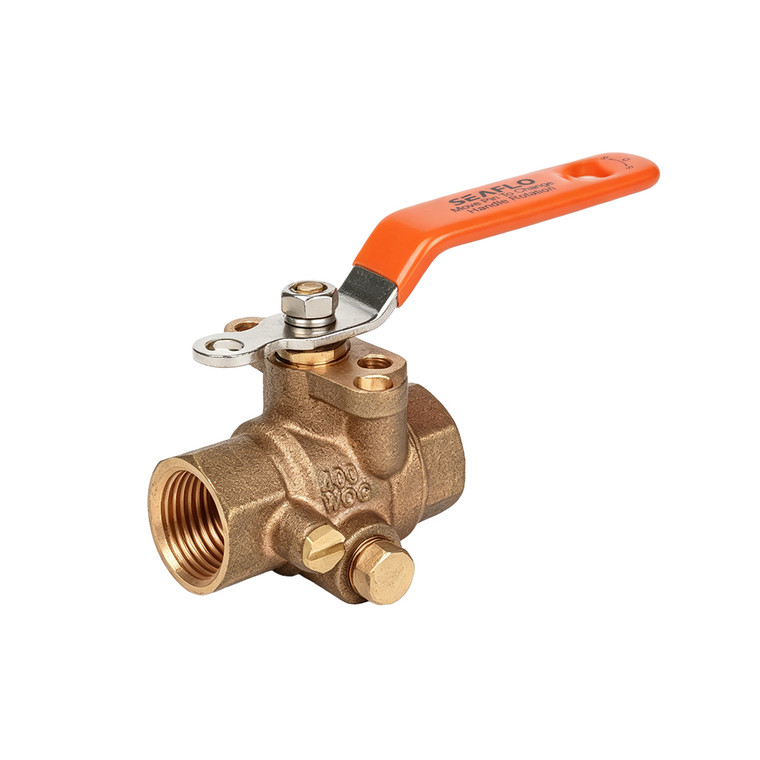

Bronze In-Line Ball Valve 03 Series

Bronze In-Line Ball Valve 03 Series

SEAFLO
SKU:
SFBV-500N-03
$24.43 - $69.58
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Features & Benefits

NPT or BSPP threaded ports

Handle has a square hole designed to accept a standard ratchet

Full-flow design, 400 WOG rated Bonding attachment

Pin hole for locking or securing handle

Compatible with the SEAFLO 01 series bronze flange adapter for use as a seacock

Model

Thread

NPT / BSPP

A

inch/mm

B

inch/mm

C

inch/mm

D

inch/mm

E

inch/mm

NPT Thread

BSPP Thread

SFBV-500N-03

SFBV-500B-03

1/2"

2.16"(55mm)

2.12"(54mm)

2.52"(64.2mm)

34.4"(87.5mm)

4.52"(115mm)

SFBV-750N-03

SFBV-750B-03

3/4"

2.32"(59mm)

2.36"(60mm)

3.11"(79mm)

4.29"(109mm)

5.46"(138.64mm)

SFBV-1000N-03

SFBV-1000B-03

1"

2.87"(73mm)

2.56"(65mm)

3.5"(89mm)

4.7"(119.5mm)

6.14"(156mm)

SFBV-1250N-03

SFBV-1250B-03

1-1/4"

3.38"(86mm)

2.75"(70mm)

4.07"(103.5mm)

5"(127.5mm)

6.71"(170.5mm)
