Mooring Compensators 01 Series Without Rope
SEAFLO
$5.90 - $24.22
(No reviews yet)
Write a Review
SEAFLO
Mooring Compensators 01 Series Without Rope
MORE FEATURES & BENEFITS
- Smooth mooring,ess shock, better protection
- Extends mooring-line service life
- UV-, ozone- and saltwater-resistant EPDM

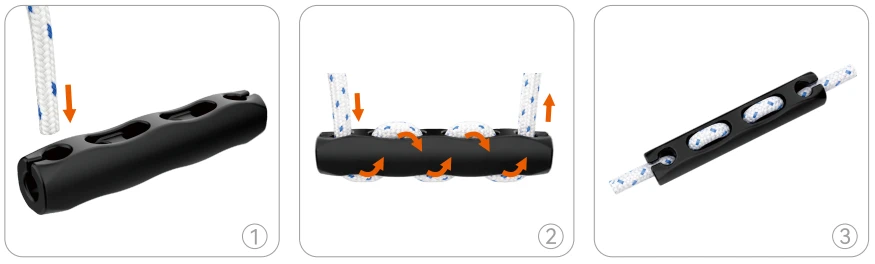

- Toolfree installation and adjustable damping
- Multiple sizes for different rope diameters

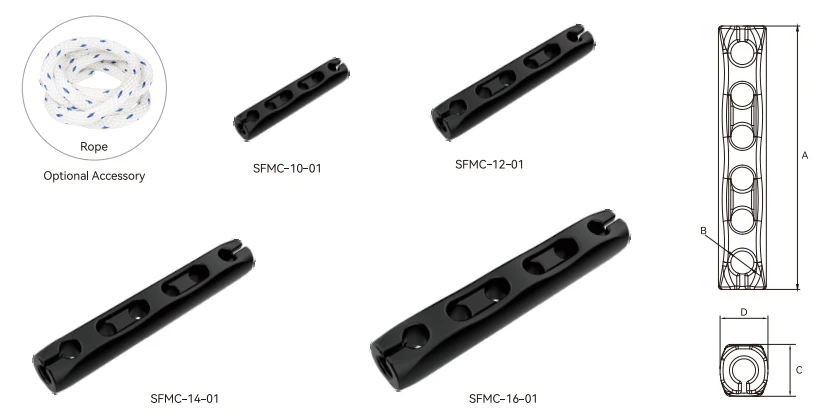

STANDARD CONFIGURATIONS
| Without Rope Modle | With Rope Modle | Rope specifications range | Rope specifications | Material | A(mm) | B(mm) | C(mm) | D(mm) |
| SFMC-10-01 | SFMC-10-01R | 8-10mm | ∅10mmx4m | EPDM | 5.2"(123mm) | ∅0.46"(11.6mm) | 1.02"(26mm) | 0.95"(24mm) |
| SFMC-12-01 | SFMC-12-01R | 10-12mm | ∅12mmx4m | EPDM | ∅0.59"(15mm) | ∅0.59"(15mm) | 1.22(31mm) | 1.26"(32mm) |
| SFMC-14-01 | SFMC-14-01R | 12-14mm | ∅14mmx4m | EPDM | ∅0.72"(18.4mm) | ∅0.72"(18.4mm) | 1.5"(38mm) | 1.52"(38.5mm) |
| SFMC-20-01 | SFMC-20-01R | 16-20mm | ∅20mmx4m | EPDM | ∅0.87"(22mm) | ∅0.87"(22mm) | 1.83"(46.6mm) | 1.86"(47.2mm) |
DIMENSIONS
