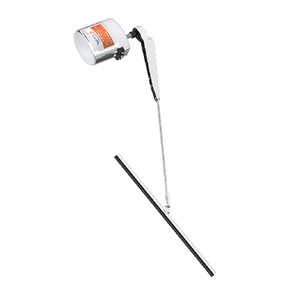

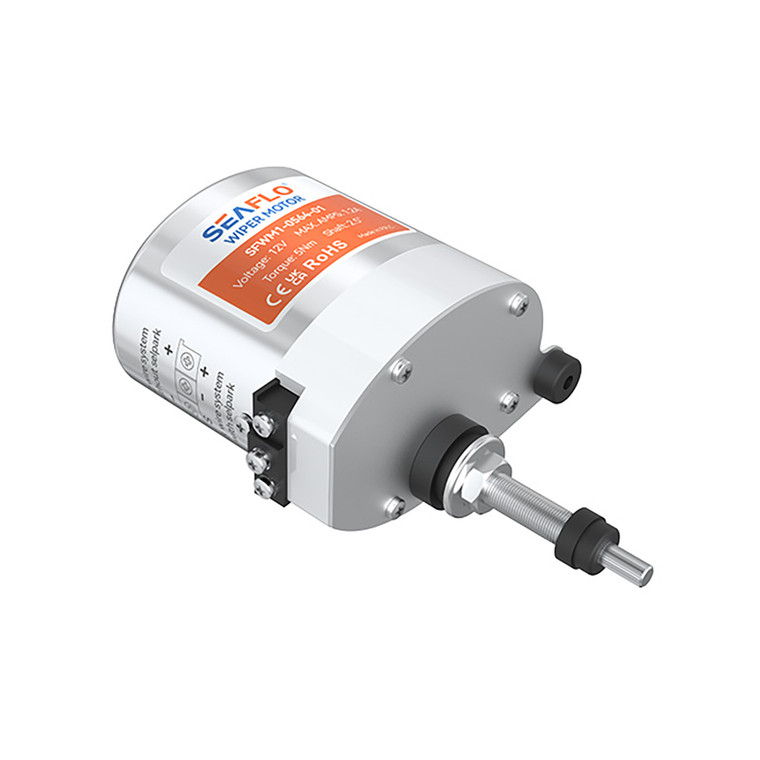

SEAFLO 12V/24V 5 Nm Wiper Motor 64mm / 2.5″Shaft length self-parking

SEAFLO 12V/24V 5 Nm Wiper Motor 64mm / 2.5″Shaft length self-parking

SKU:
SFWM1-0564-01
$51.20 - $53.20
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

01 Series Wiper Motor 5Nm can adjustable sweep angles: 90°, 110°. Adjustable self-parking to the right or left position. Stainless steel driveshaft and durable metal housing. Supports multiple wiper arm and blade combinations. Powers arm/blade combinations up to 380 mm / 405 mm. Providing efficient wiping solutions for every vessel. Reliable and durable wiper solutions for all marine environments.

FEATURES & BENEFITS

Factory preset to left parking position with a sweep angle of 90°

MORE FEATURES & BENEFITS

· 5 Nm torque

·  Adjustable sweep angles: 90°, 110°

·  Adjustable self-parking to the right or left position

·  Stainless steel driveshaft and durable metal housing

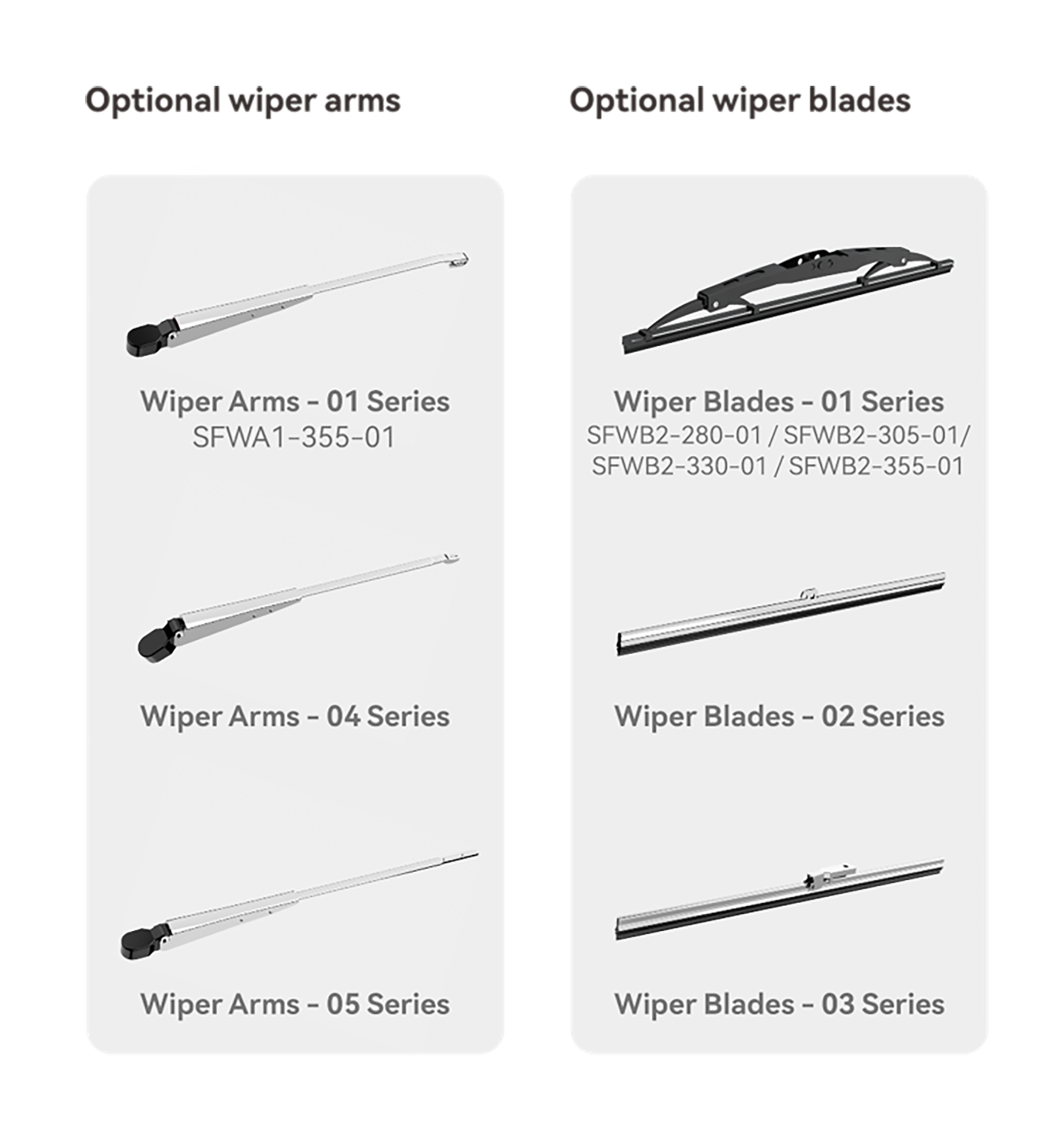

·  Supports multiple wiper arm and blade combinations

·  Powers arm/blade combinations up to 380 mm / 405 mm

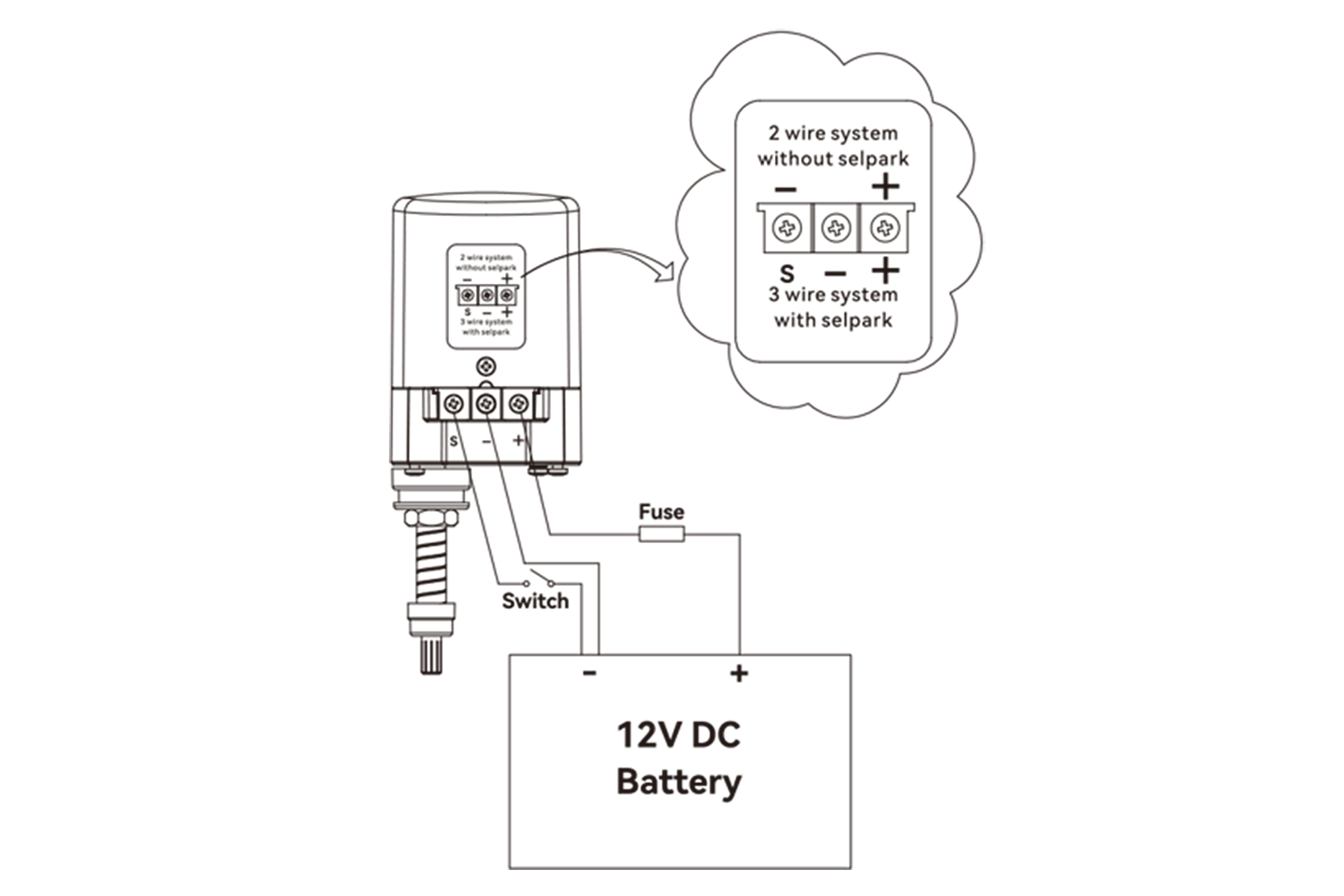

Wiring Options (See Figure):

· 2 wire system without selfpark

· 3 wire system with selfpark

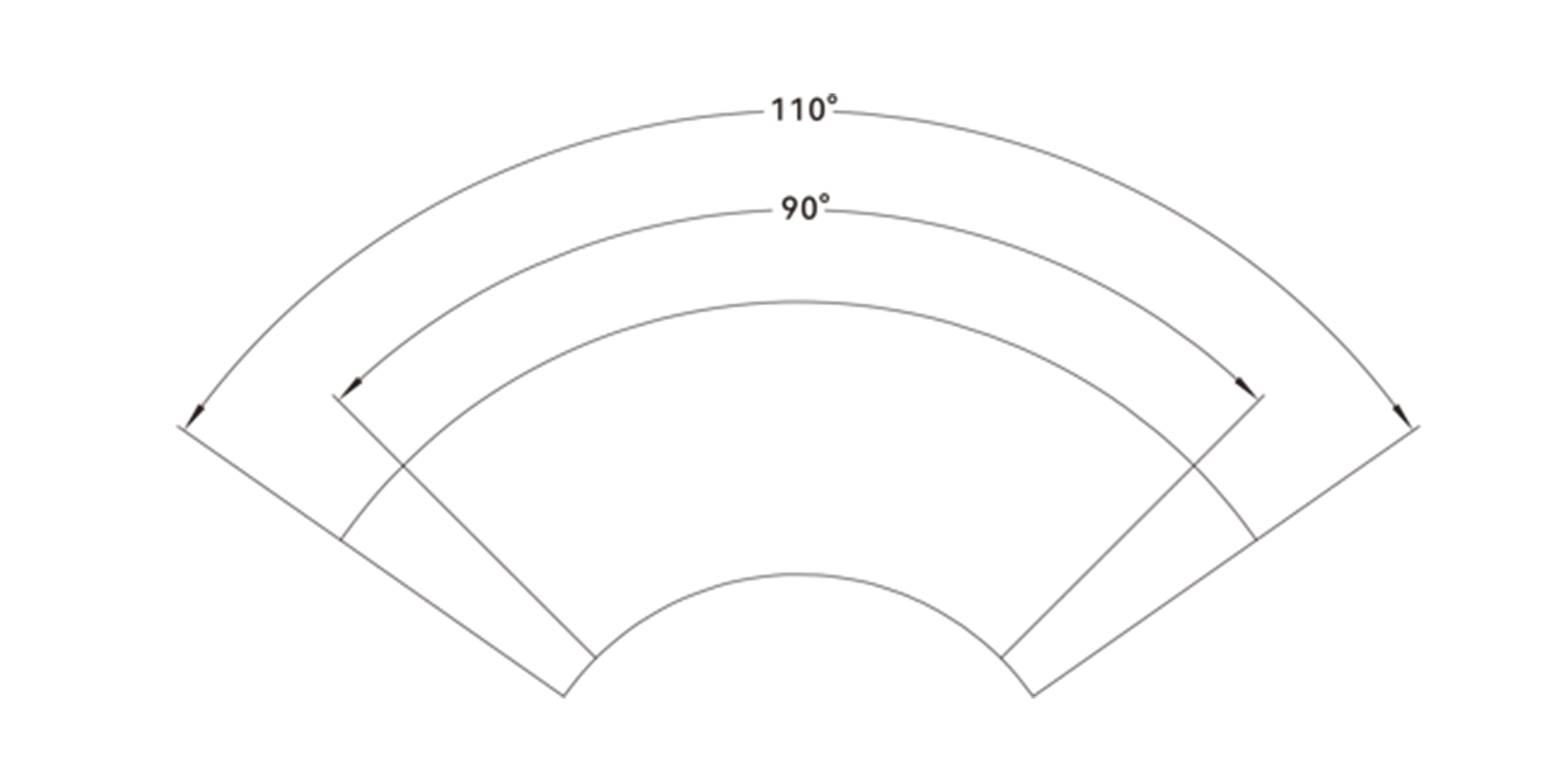

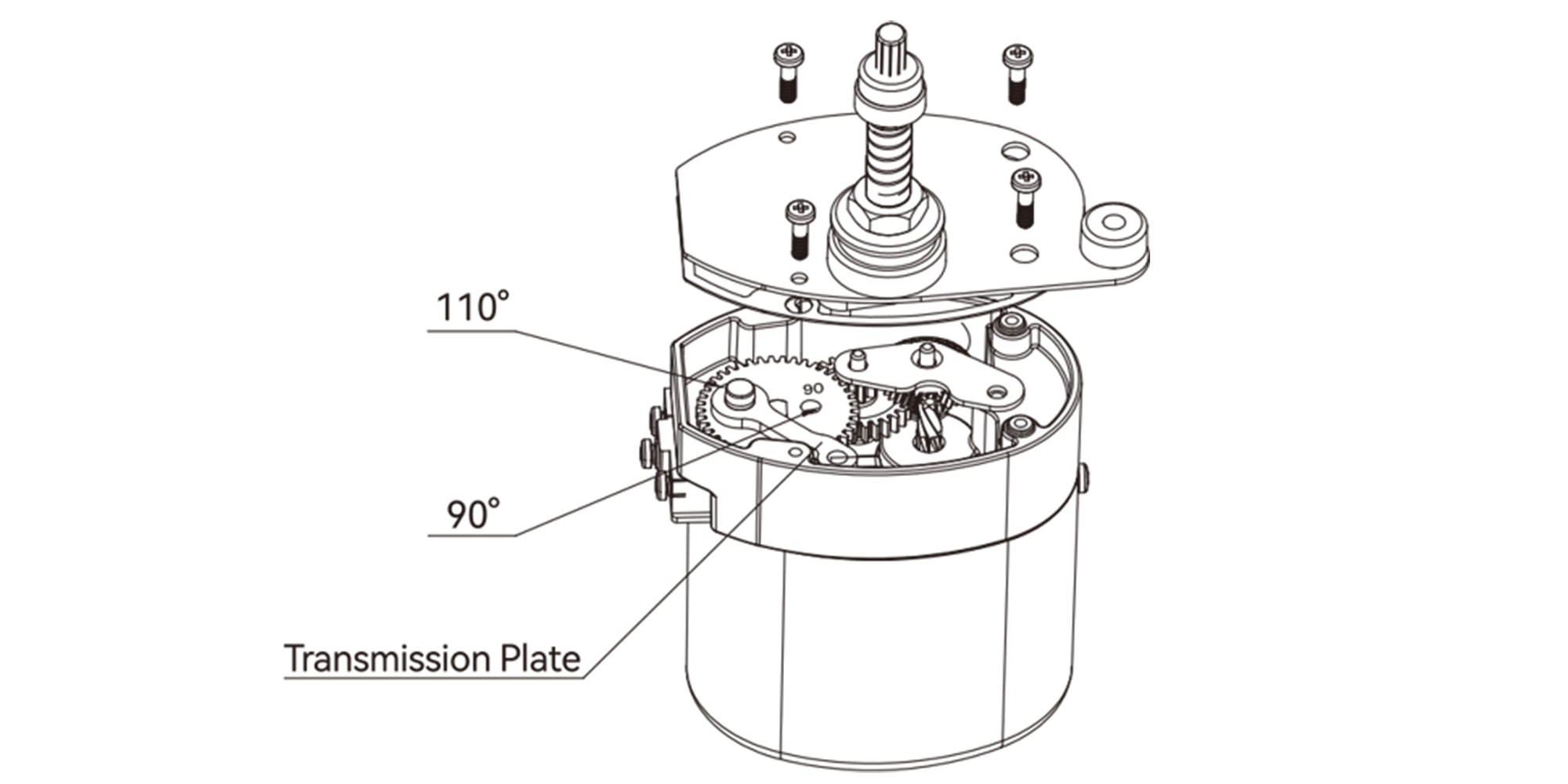

Changing the Wiping Angle:

1. Remove the four screws located at the bottom of the motor.

2. Move the transmission plate to the hole corresponding to the desired angle (90° or 110°).

3. Reinstall the screws and tighten them securely.

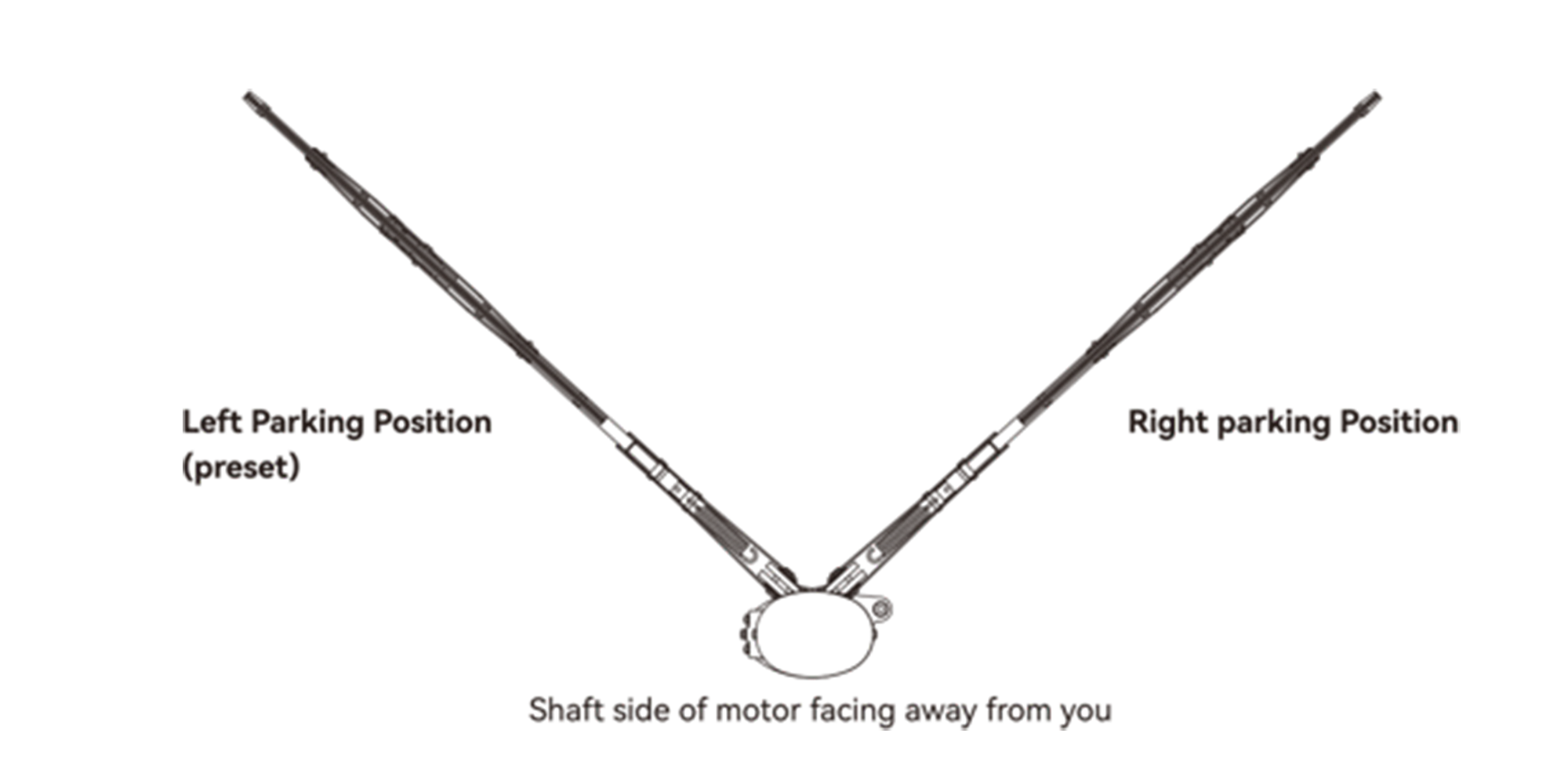

Changing Parking Position:

1. Remove the screws from both sides of the motor.

2. Remove the motor cover.

3. Detach the angle plate assembly.

4. Rotate the angle plate assembly by 180 degrees.

5. Reinstall the angle plate assembly.

6. Reattach the motor cover and tighten the screws on both sides.



STANDARD CONFIGURATIONS

Model

Max Current

Voltage

Torque

Shaft

Sweep Angles

Sweep Speed

Fuse
SFWM1-0564-01
1.2A
12 V
5Nm
64mm / 2.5″
90°, 110°
40 sweeps/min
3A
SFWM2-0564-01
0.6A
24 V
5Nm
64mm / 2.5″
90°, 110°
40 sweeps/min
2A

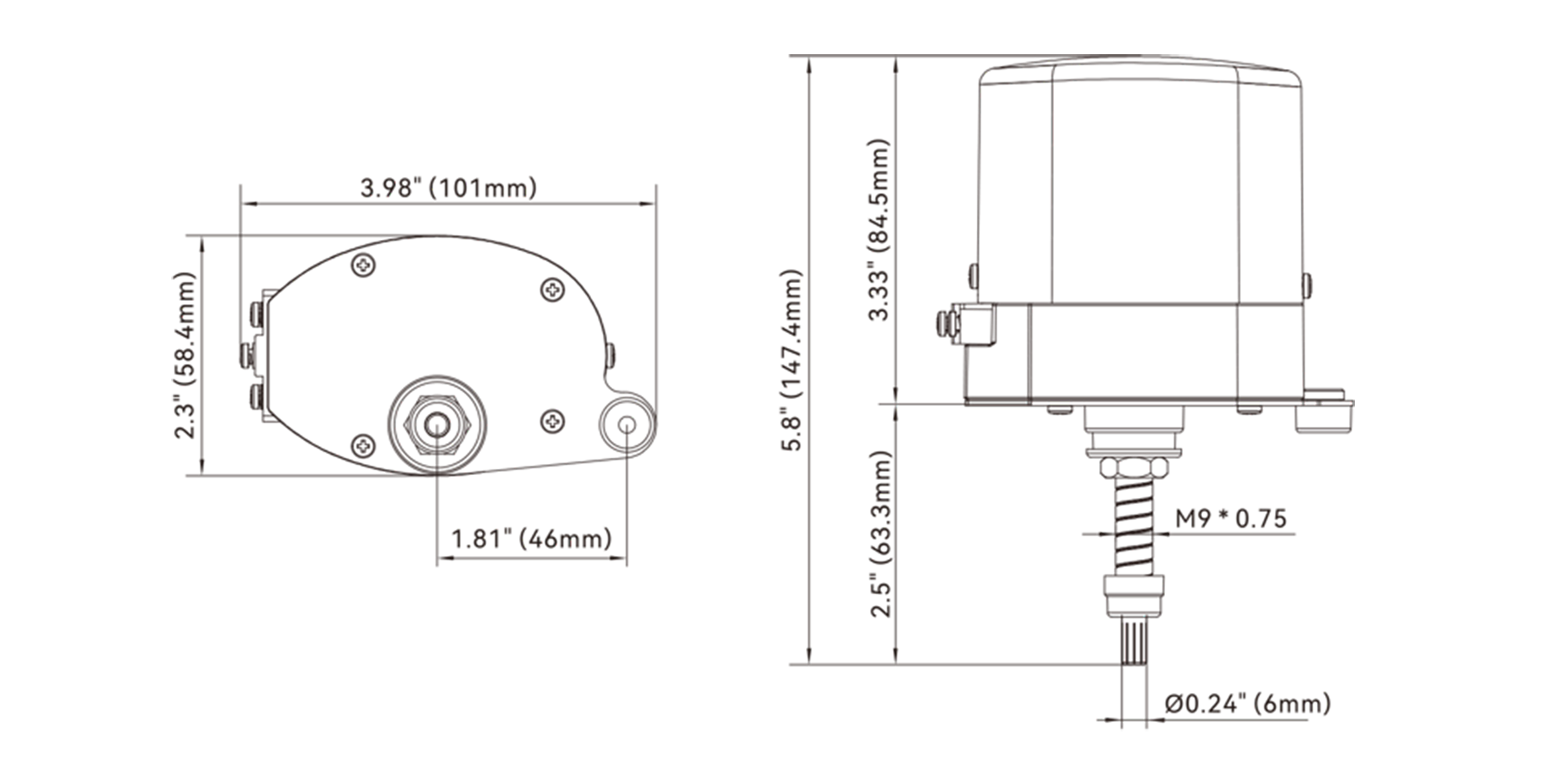

Dimension

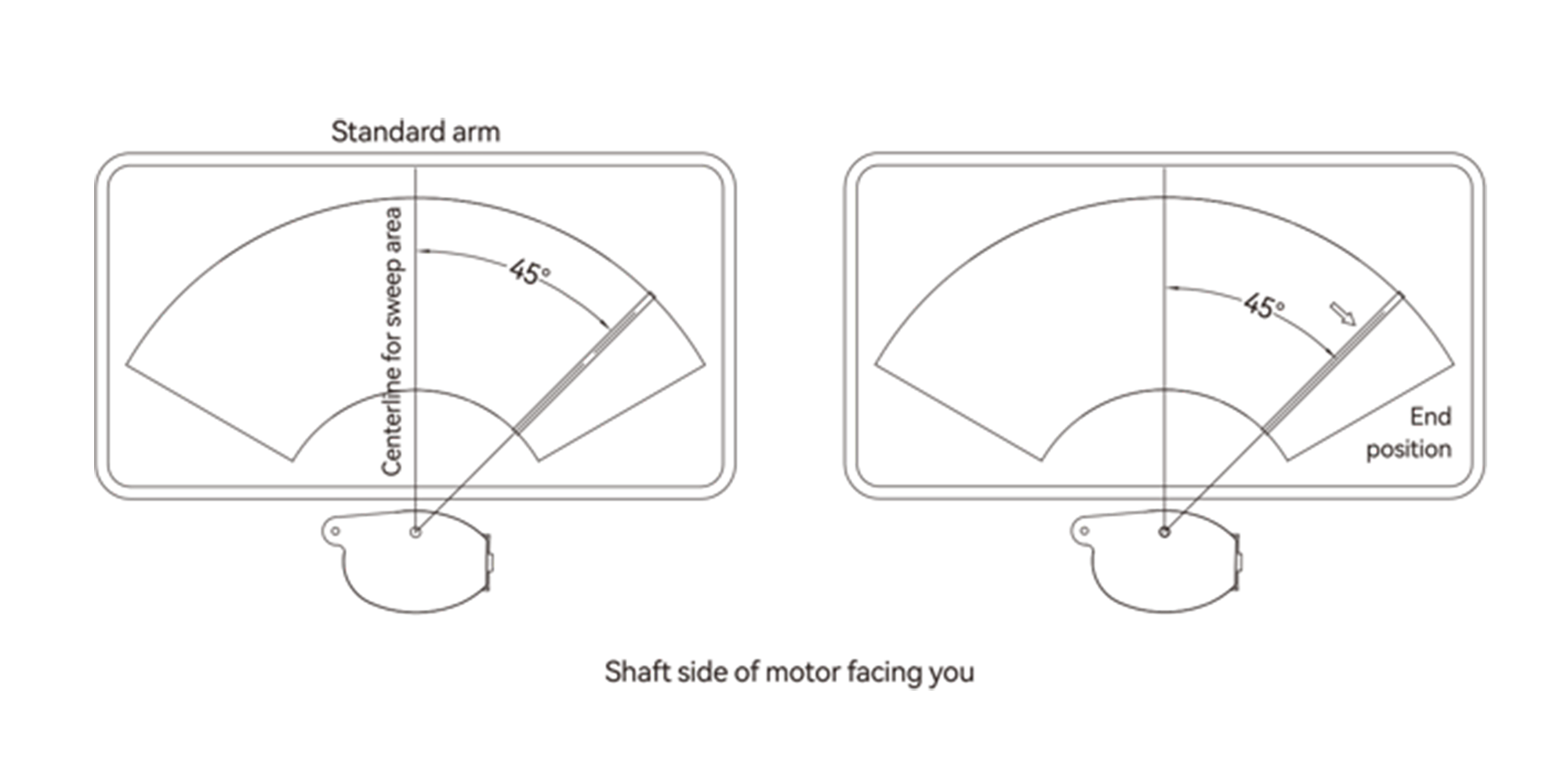

Installation Diagram
