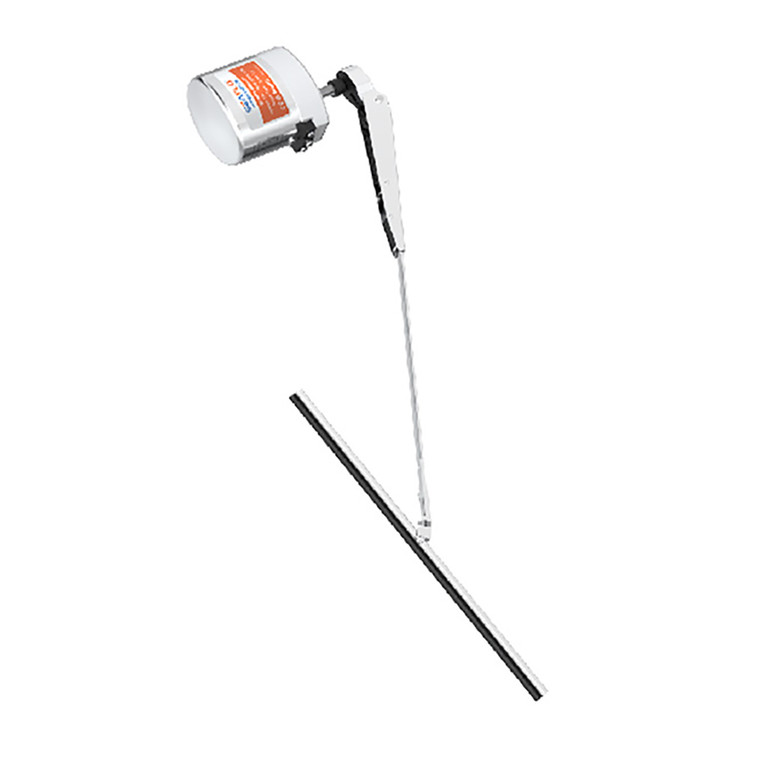

SEAFLO 12V/24V 5 Nm Wiper Motor Kits 64mm / 2.5″Shaft length self-parking

SEAFLO 12V/24V 5 Nm Wiper Motor Kits 64mm / 2.5″Shaft length self-parking

SKU:
SFWK1-0564-01
$99.60 - $130.17
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Providing efficient wiping solutions for every vessel. Reliable and durable wiper solutions for all marine environments.

FEATURES & BENEFITS

Factory preset to left parking position with a sweep angle of 90°

MORE FEATURES & BENEFITS

Wiper Motor Features:

· 5 Nm torque

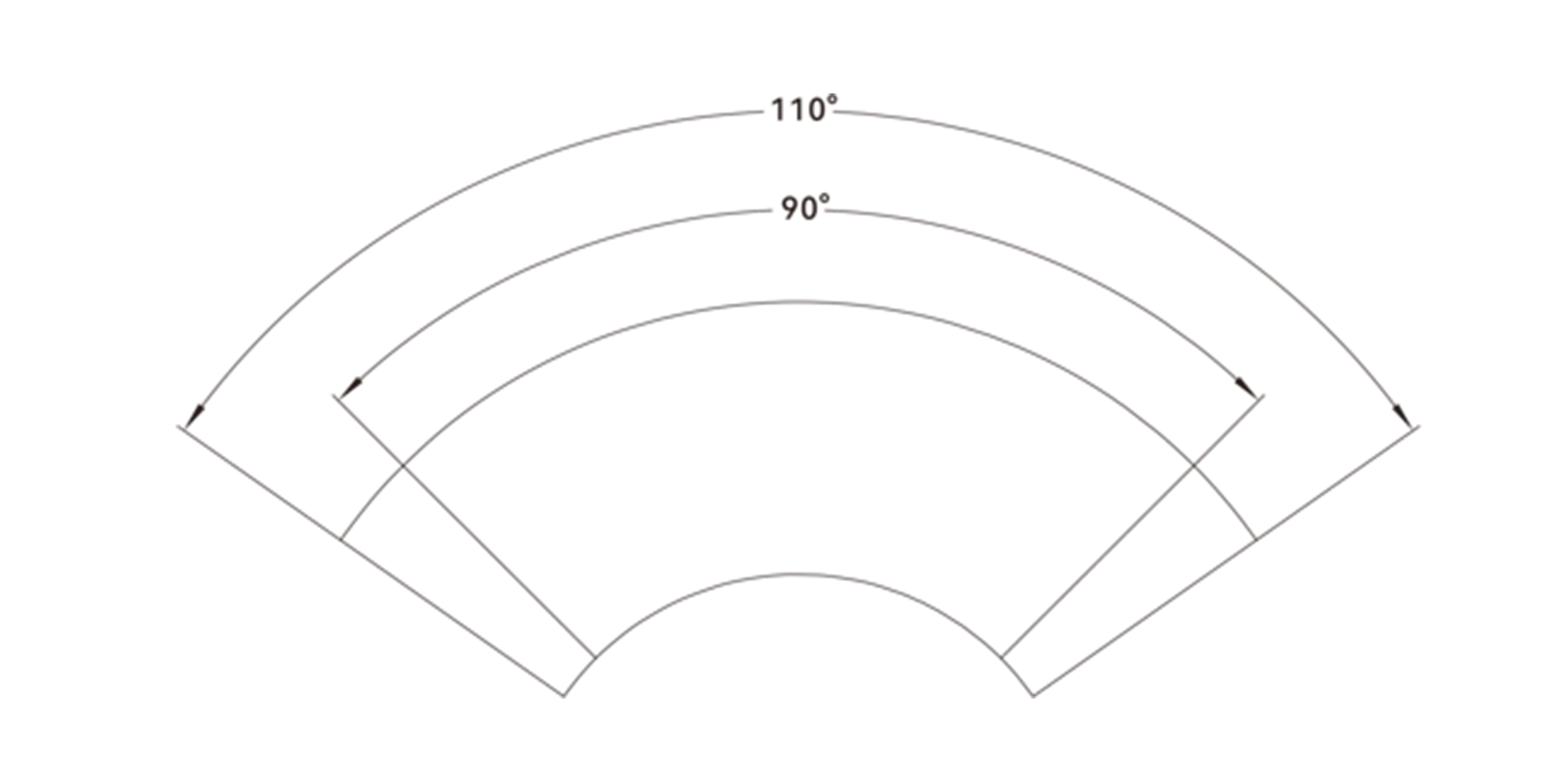

·  Adjustable sweep angles: 90°, 110°

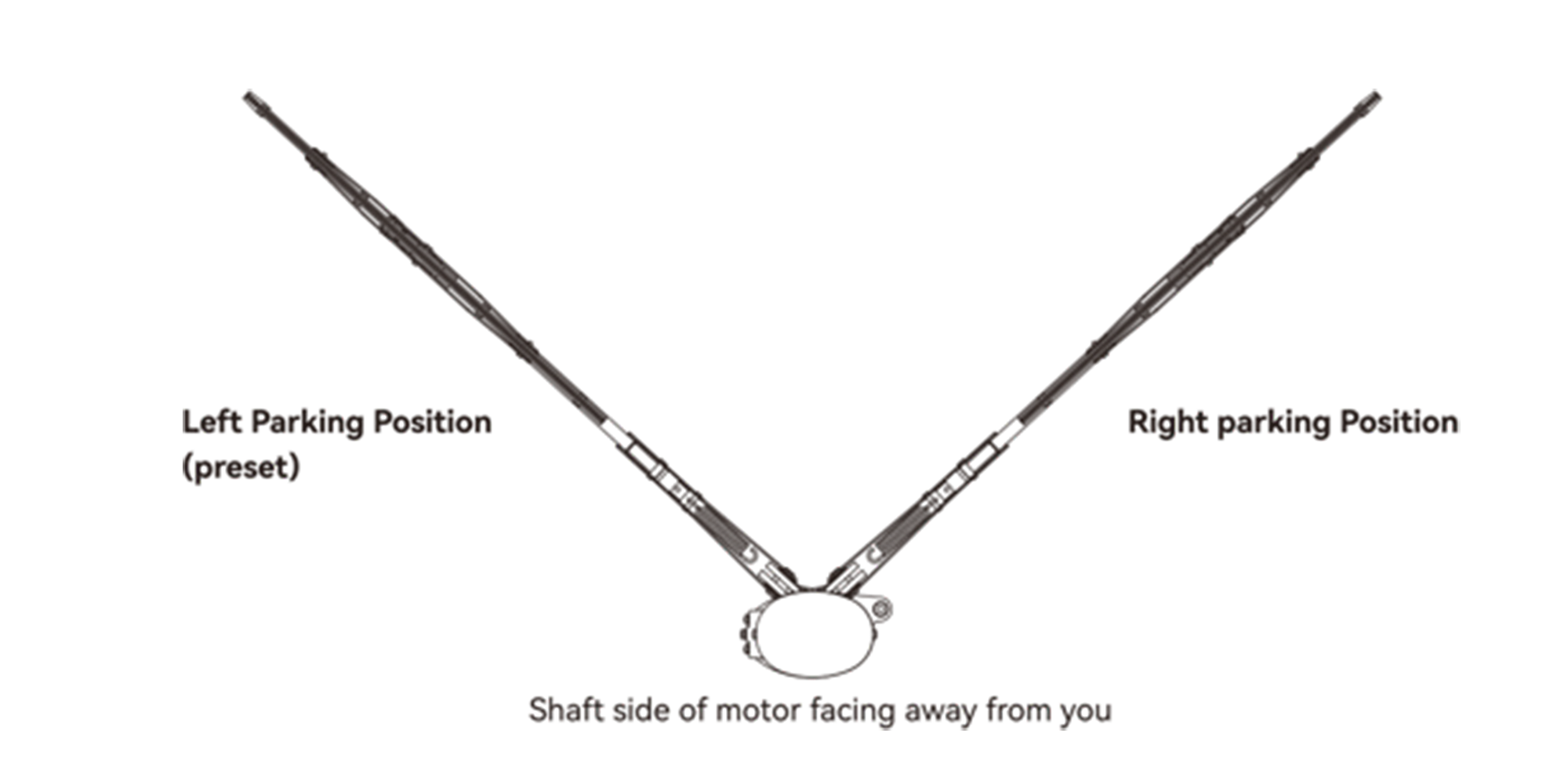

·  Adjustable self-parking to the right or left position

·  Stainless steel driveshaft and durable metal housing

·  Shaft Length: 64 mm / 2.5″

Wiper Arm Features:

· Adjustable length

· 316 stainless steel construction

· Reinforced durability

Wiper Blade Features:

· Rust-resistant stainless steel frame.

· Natural rubber blade for smooth wiping

· Easy installation



STANDARD CONFIGURATIONS

Model

Max Current

Voltage

Sweep Speed

Motor Model

Wiper Arm Length

Wiper Blade Length

Fuse
SFWK1-0564-01
1.2A
12 V
40 sweeps/min
SFWM1-0564-01
9-1/4″~12-3/8″ (235~315mm)
11″（280mm）
3A
SFWK2-0564-01
0.6A
24 V
40 sweeps/min
SFWM2-0564-01
9-1/4″~12-3/8″ (235~315mm)
11″（280mm）
2A
SFWK1-0564-02
1.2A
12 V
40 sweeps/min
SFWM1-0564-02
12″~15″ (305~380mm)
14″（355mm）
3A
SFEK2-0564-02
0.6A
24 V
40 sweeps/min
SFWM2-0564-02
12″~15″ (305~380mm)
14″（355mm）
2A
