SEAFLO 12V/24V 6 Nm Wiper Motor Kits Shaft length 64mm / 2.5″ self-parking Adjustable sweep angle

SEAFLO 12V/24V 6 Nm Wiper Motor Kits Shaft length 64mm / 2.5″ self-parking Adjustable sweep angle

SKU:
SFWK1-0664-01
$150.51 - $153.21
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Providing efficient wiping solutions for every vessel. Reliable and durable wiper solutions for all marine environments.

FEATURES & BENEFITS

Factory preset to left parking position with a sweep angle of 110°

MORE FEATURES & BENEFITS

Wiper Motor Features:

·  6 Nm torque

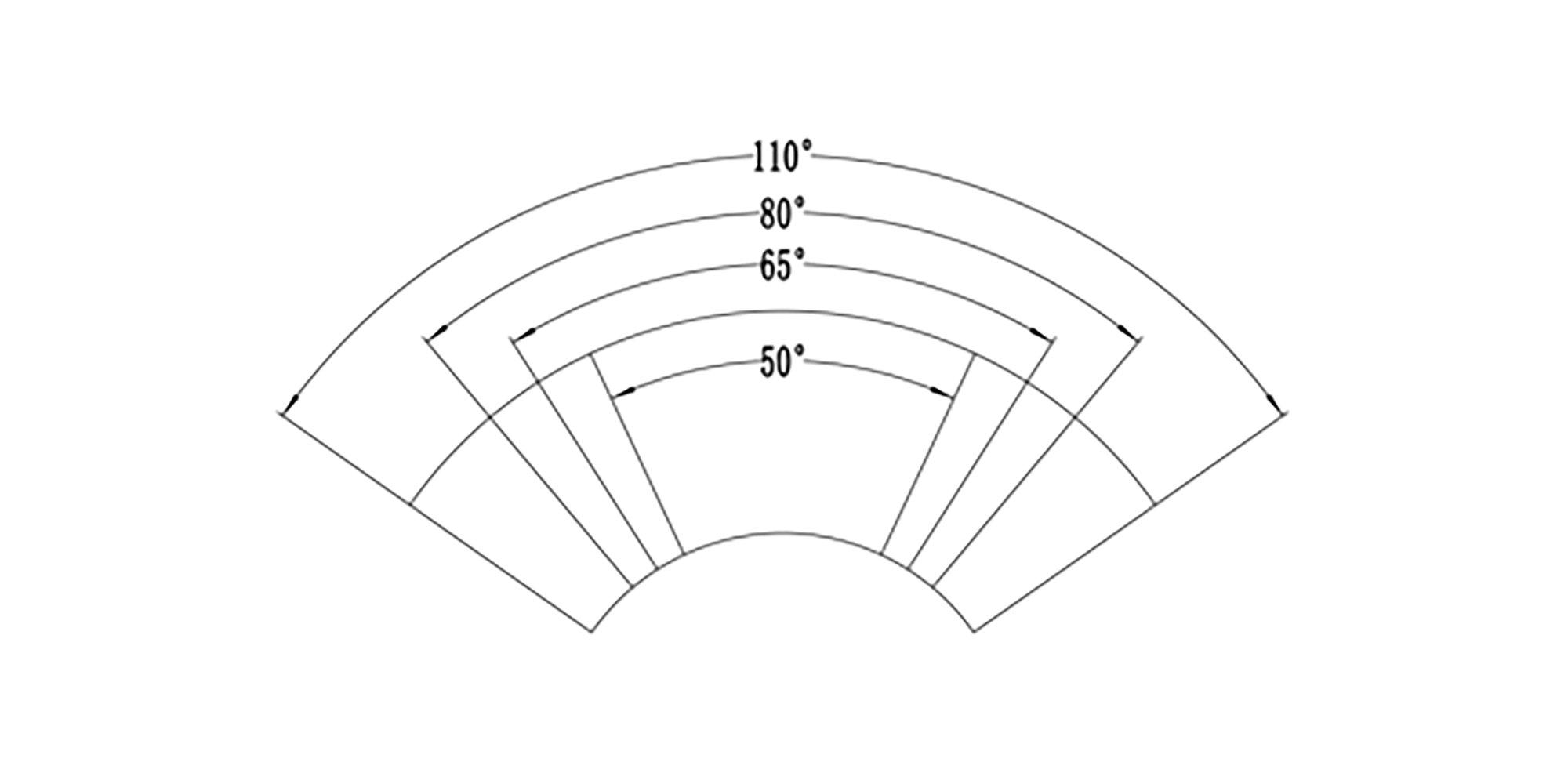

·  Adjustable sweep angles: 50°, 65°, 80°, 110°

·  Adjustable self-parking to the right or left position

·  Stainless steel driveshaft with anti-rotation design

·  UV- and high-temperature-resistant thermoplastic housing

·  Shaft Length: 64 mm / 2.5″

Wiper Arm Features:

· Adjustable length

· 316 stainless steel construction

· Reinforced durability

Wiper Blade Features:

· Rust-resistant iron frame with an anti-glare coating

· Natural rubber blade for smooth wiping

· Steel backer ensures even pressure on windshield



STANDARD CONFIGURATIONS

Model

Max Current

Voltage

Sweep Speed

Motor Model

Wiper Arm Length

Wiper Blade Length

Fuse
SFWK1-0664-01
2.5A
12 V
45 sweeps/min
SFWM1-0664-01
12″~17″ (310~440mm)
14″（355mm）
5A
SFWK2-0664-01
1.2A
24 V
45 sweeps/min
SFWM2-0664-01
12″~17″ (310~440mm)
14″（355mm）
3A
