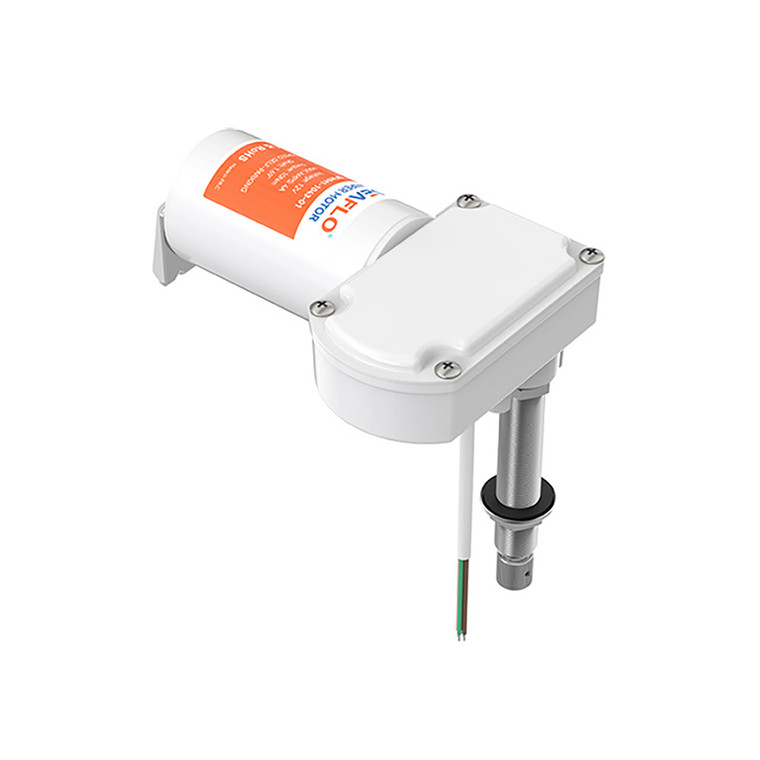

SEAFLO 12V/24V Wiper Motor 10 Nm Shaft length 43mm / 1.69″ 2-speed self-parking Adjustable sweep angles: Type I: 40, 45, 50, 55 / Type II: 60°, 70°, 80°, 90° / Type III:83, 100, 110, 120, 01 Series
$105.48 - $109.48
(No reviews yet)
Write a Review
SEAFLO 12V/24V Wiper Motor 10 Nm Shaft length 43mm / 1.69″ 2-speed self-parking Adjustable sweep angles: Type I: 40, 45, 50, 55 / Type II: 60°, 70°, 80°, 90° / Type III:83, 100, 110, 120, 01 Series
01 Series Wiper Motor 10Nm have three sweep angle types with multi-level adjustability. 2-speed, self-parking. Parking position adjustable to the left or right side. Driveshaft in stainless steel. EMC protected. Insulated ground for metal, plastic, and wooden boats. Powers arm/blade combinations up to 610mm / 560 mm. Providing efficient wiping solutions for every vessel. Reliable and durable wiper solutions for all marine environments.
MORE FEATURES & BENEFITS
· 10 Nm torque
· Three sweep angle types with multi-level adjustability
· 2-speed, self-parking
· Parking position adjustable to the left or right side
· Driveshaft in stainless steel
· EMC protected
· Insulated ground for metal, plastic, and wooden boats

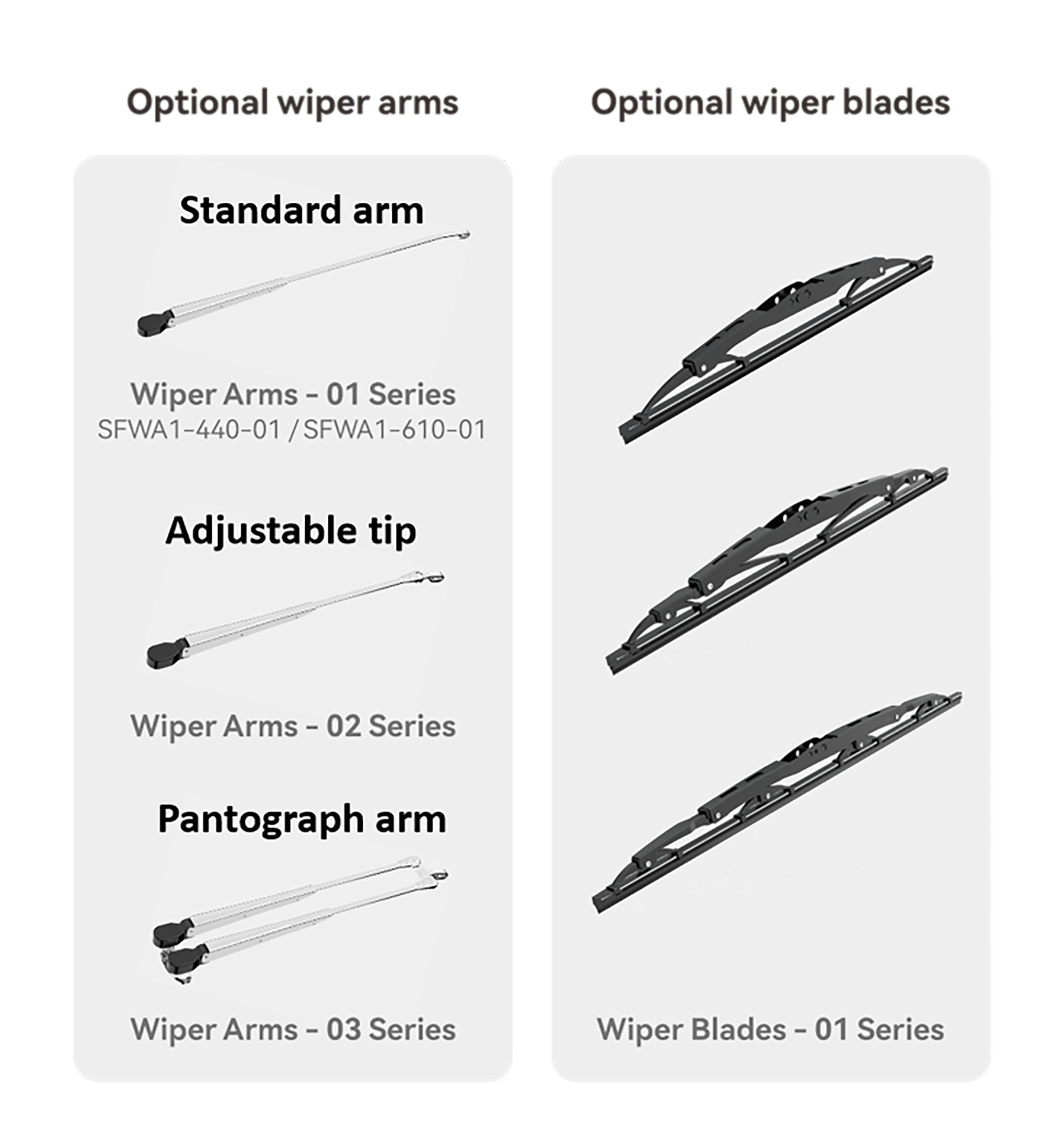

· Powers arm/blade combinations up to 610mm / 560 mm
Optional Angles |
Preset Angle |
Preset Park Position |
Type I(Sweep Angles: 40°, 45°, 50°, 55°) |
45° |
Left |
Type II(Sweep Angles: 60°, 70°, 80°, 90°) |
60° |
Left |
(Sweep Angles: 83°, 100°, 110°, 120°) |
110° |
Left |
STANDARD CONFIGURATIONS
Model |
Max Curren |
Max Curre |
Torque |
Shaft |
High Speed |
Low Speed |
Fuse |
| SFWM1-1043-01 | 4 A |
12V |
10 Nm |
43mm / 1.69″ |
55 sweeps/min |
35 sweeps/min |
5A |
| SFWM2-1043-01 | 2A |
24V |
10 Nm |
43mm / 1.69″ |
35 sweeps/min |
3A |
|
| SFWM1-1068-01 | 4 A |
12V |
10 Nm |
68mm / 2.68″ |
55 sweeps/min |
35 sweeps/min |
5A |
| SFWM2-1068-01 | 2A |
24V |
10 Nm |
68mm / 2.68″ |
55 sweeps/min |
35 sweeps/min |
3A |
| SFWM1-1094-01 | 4 A |
12V |
10 Nm |
94mm / 3.70″ |
55 sweeps/min |
35 sweeps/min |
5A |
| SFWM2-1094-01 | 2A |
24V |
10 Nm |
94mm / 3.70″ |
55 sweeps/min |
35 sweeps/min |
3A |

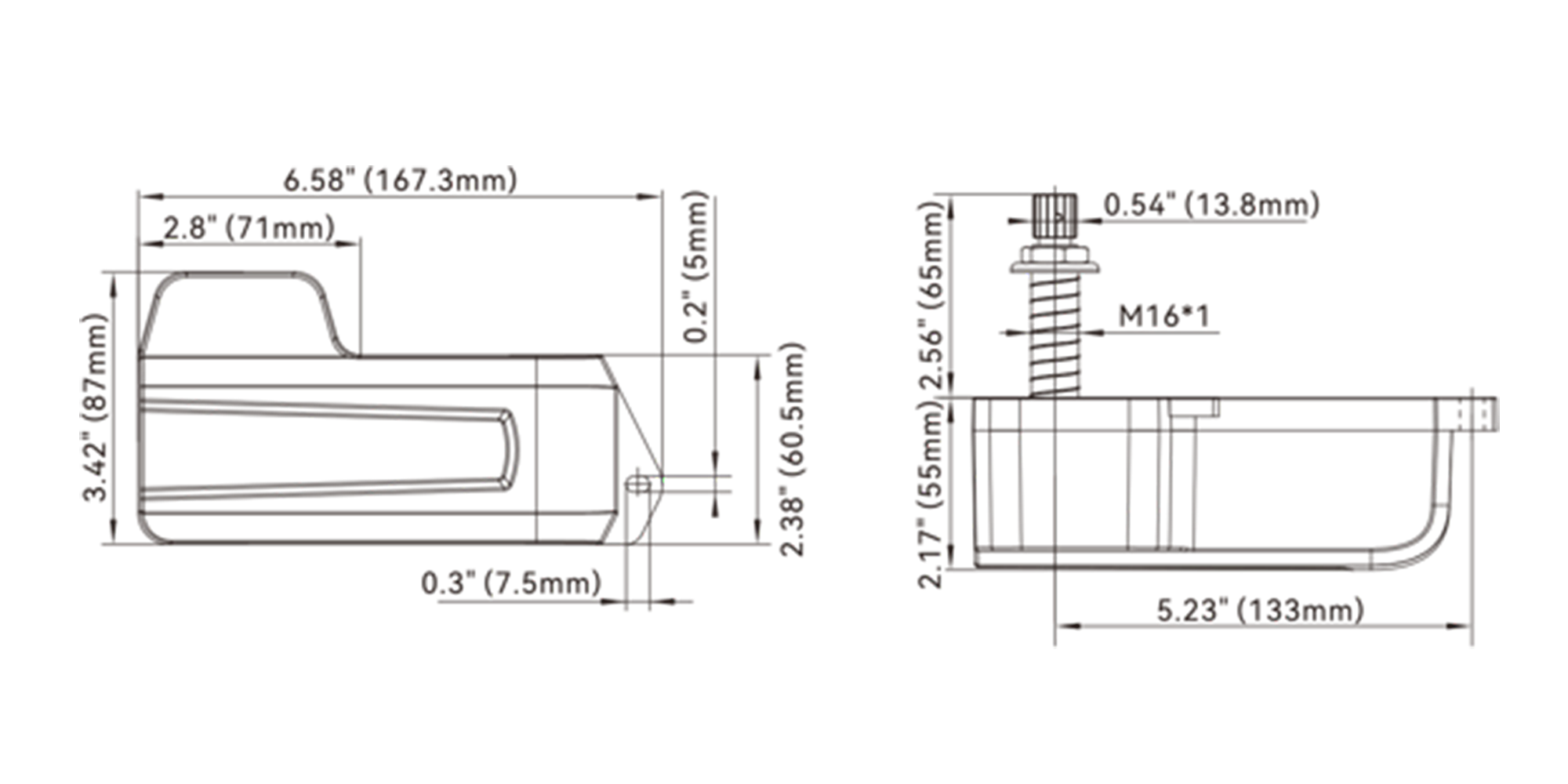

Dimension
Sweep Adjustment Options
Sweep Angle |
A° |
B° |
C° |
D° |
Type I |
40 |
45 |
50 |
55 |
Type II |
60 |
70 |
80 |
90 |
Type III |
83 |
100 |
110 |
120 |
Changing the Wiping Angle and Parking Position
Note: Ensure the wiper motor is in the parked position and the battery main switch is turned off before performing any operation inside the motor.
1. Remove the wiper arm.
2. Remove the gearbox cover.
3. Remove the circlip.
4. Remove the transmission plate.
5. Loosen the two screws securing the sweep angle plate.

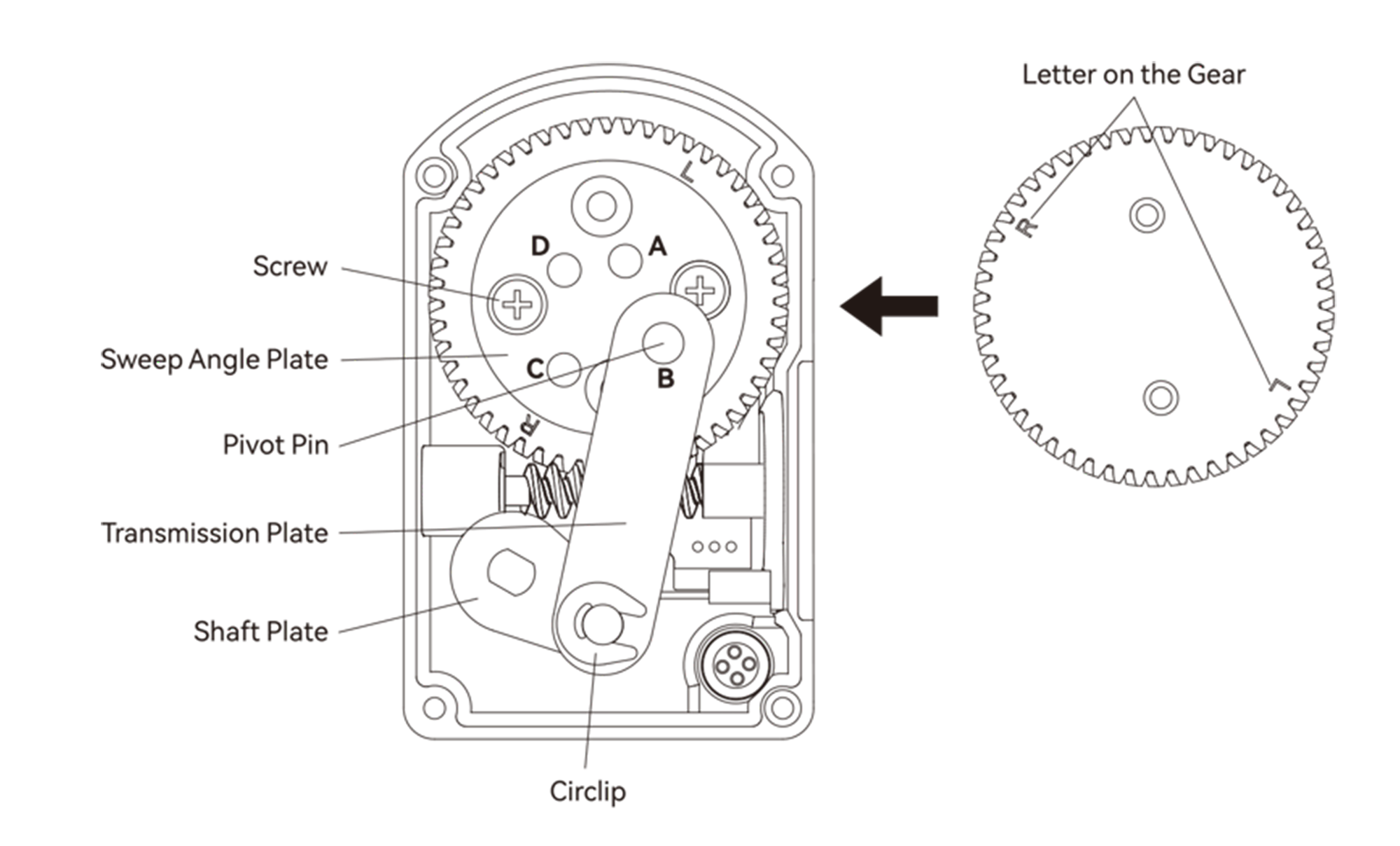

6. Rotate the sweep angle plate and align the desired degree with the letter on the gear:
· "L" for the left parking position.
· "R" for the right parking position.
7. Retighten the two screws securing the sweep angle plate.
8. Insert the pivot pin into the desired angle hole.
9. Reconnect the transmission plate to the shaft plate and secure it with the circlip.
10. Run the wiper motor to the parking position and reinstall the wiper arm.

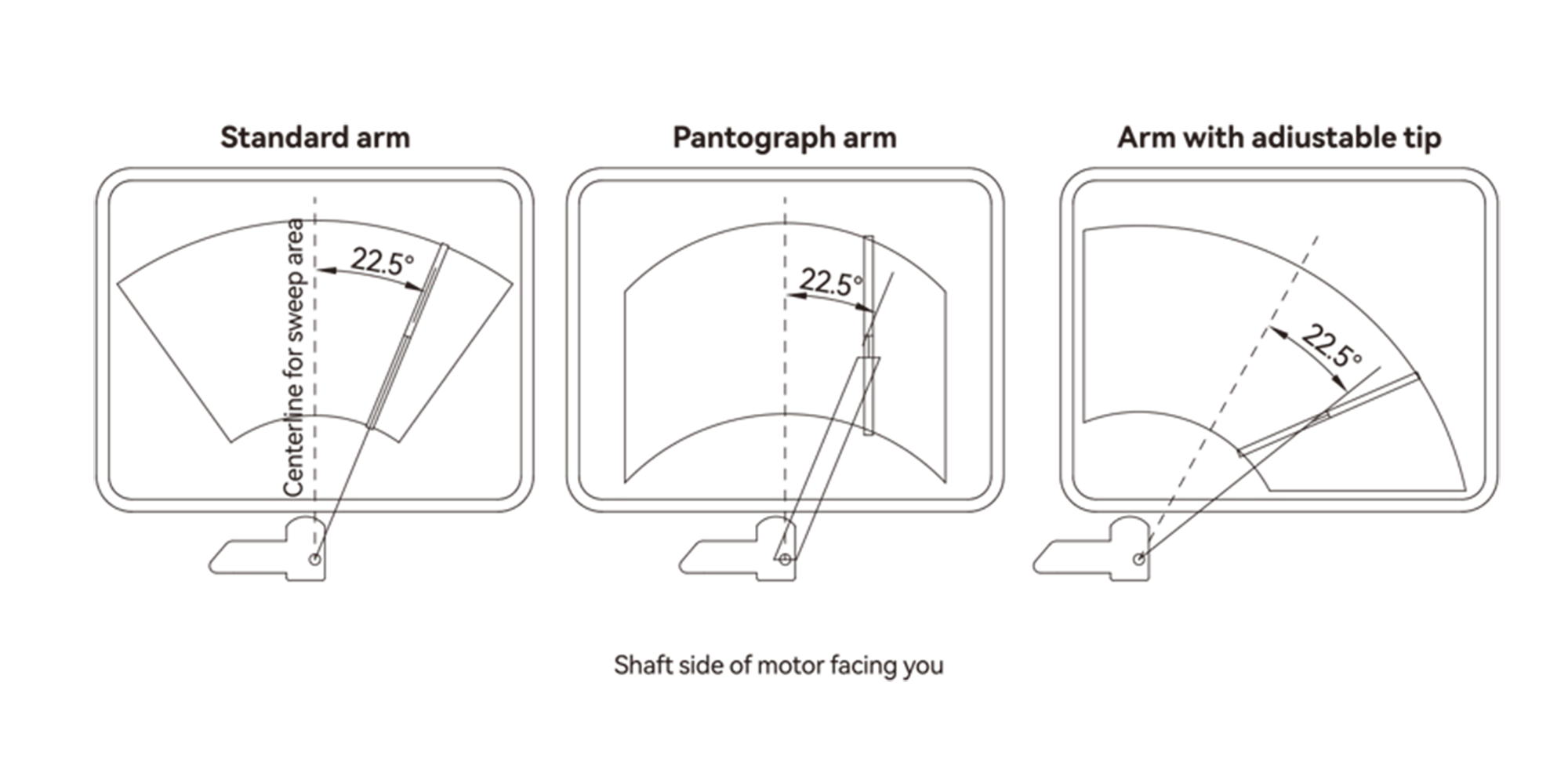

Installation Diagram
