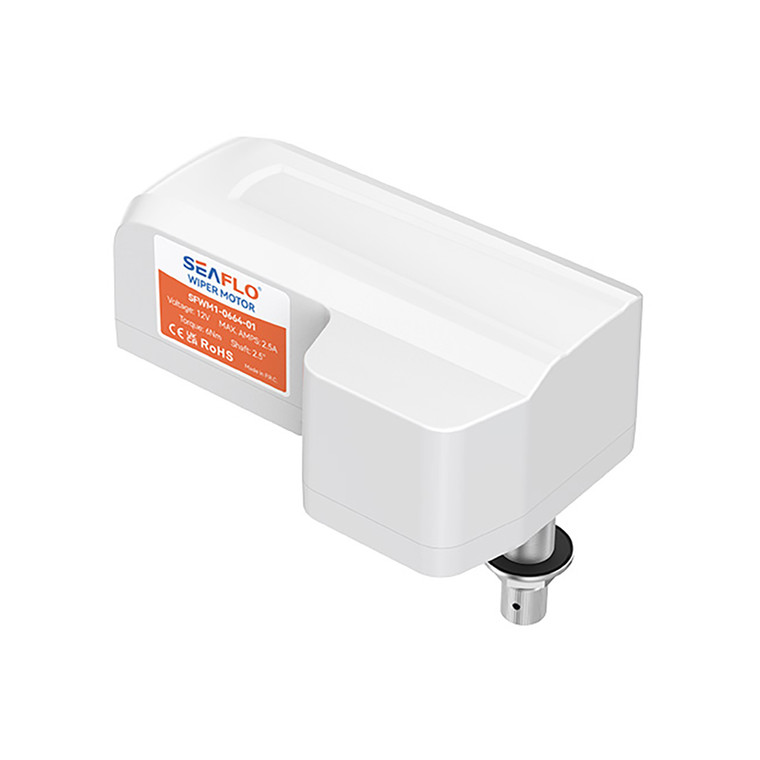

SEAFLO 12V/24V Wiper Motor 6 Nm Shaft length 64mm / 2.5″ self-parking Adjustable sweep angles

SEAFLO 12V/24V Wiper Motor 6 Nm Shaft length 64mm / 2.5″ self-parking Adjustable sweep angles

SKU:
SFWM1-0664-01
$81.58 - $83.58
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

01 Series Wiper Motor 6Nm can adjustable sweep angles: 50°, 65°, 80°, 110°. Adjustable self-parking to the right or left position. Stainless steel driveshaft with anti-rotation design. UV- and high-temperature-resistant thermoplastic housing. Powers arm/blade combinations up to 440 mm / 355 mm. Providing efficient wiping solutions for every vessel. Reliable and durable wiper solutions for all marine environments.

FEATURES & BENEFITS



Factory preset to left parking position with a sweep angle of 110°



MORE FEATURES & BENEFITS



·  6 Nm torque

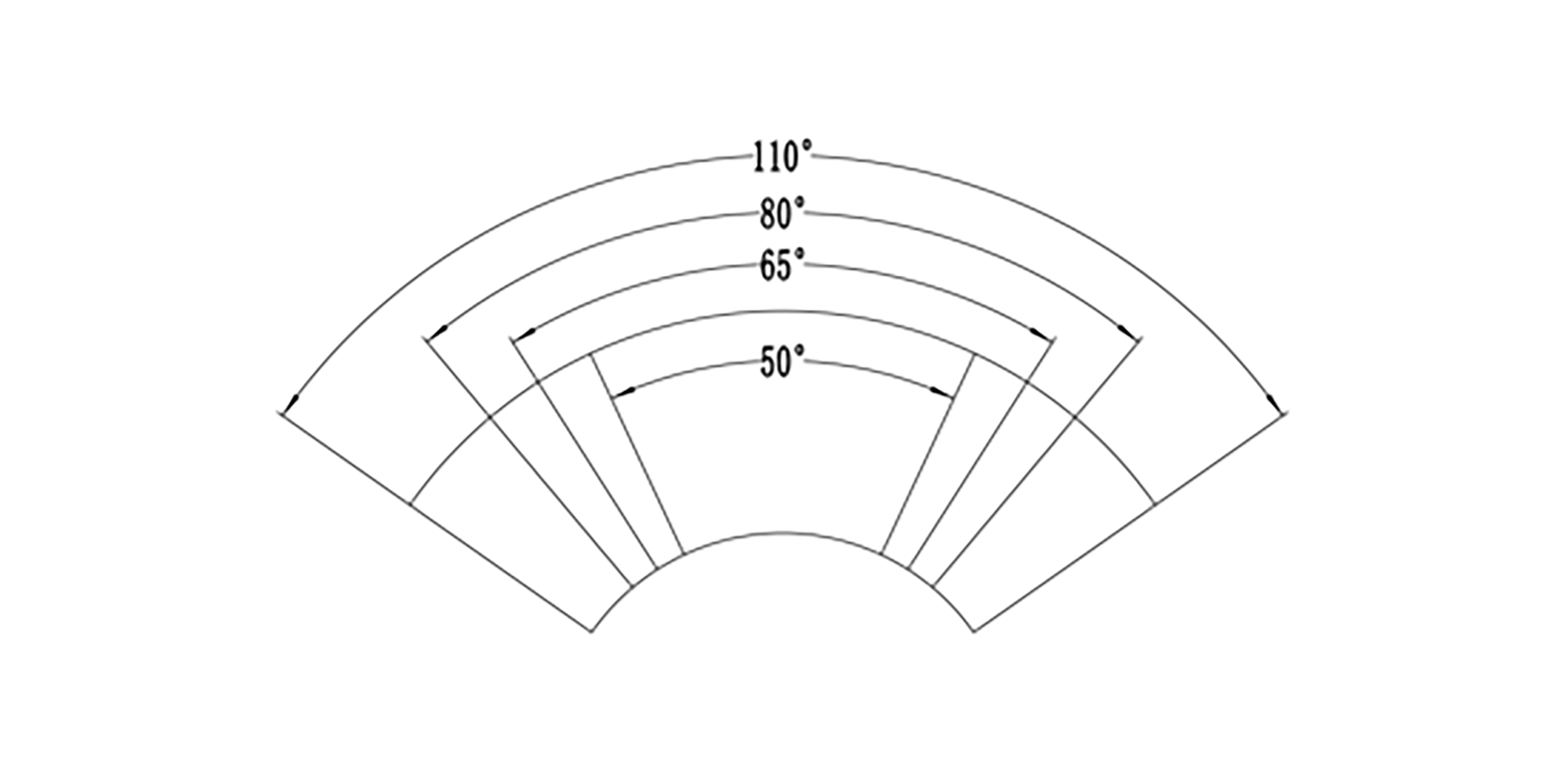

·  Adjustable sweep angles: 50°, 65°, 80°, 110°

·  Adjustable self-parking to the right or left position

·  Stainless steel driveshaft with anti-rotation design

·  UV- and high-temperature-resistant thermoplastic housing

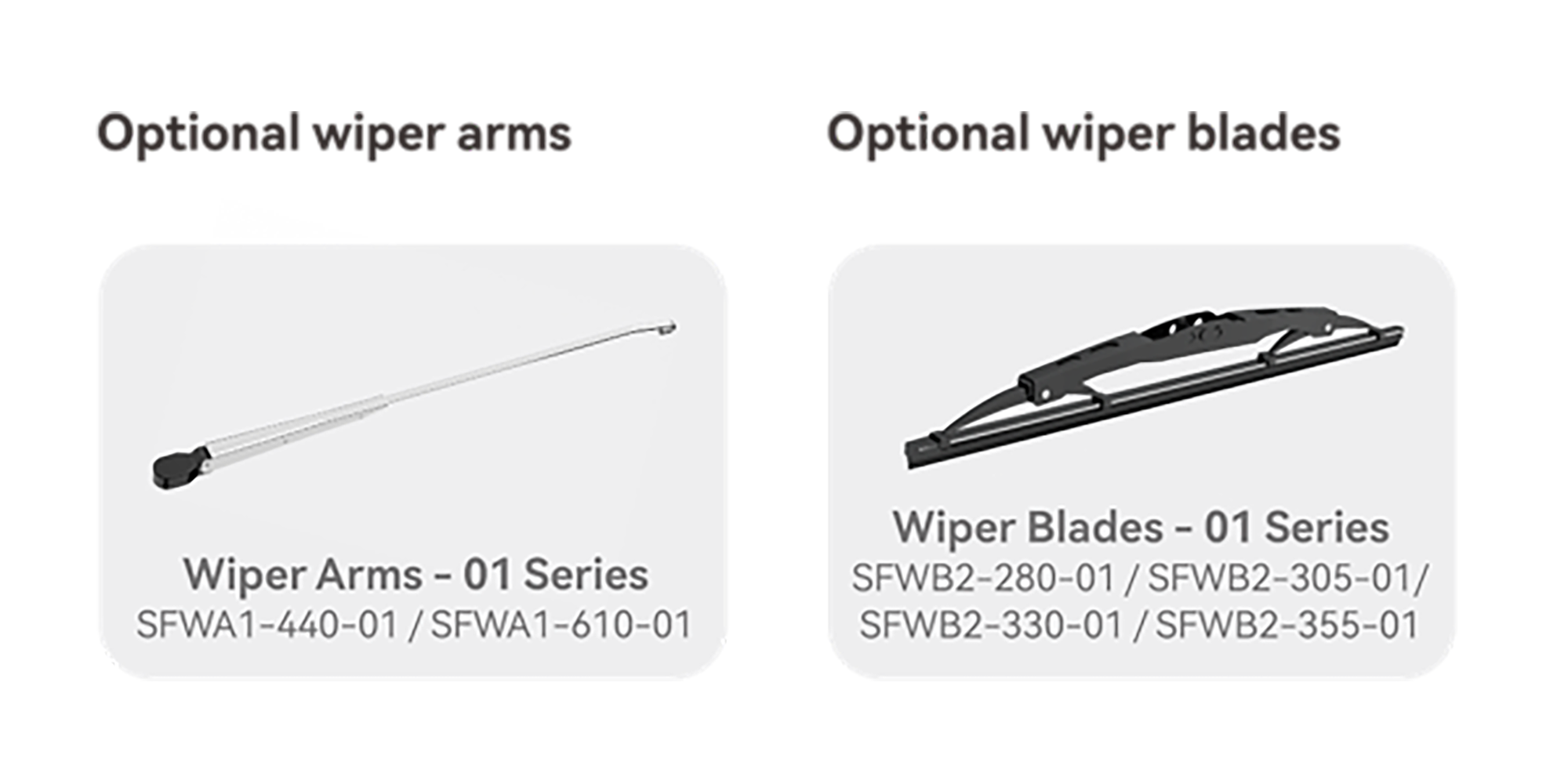

·  Powers arm/blade combinations up to 440 mm / 355 mm



STANDARD CONFIGURATIONS

Model
Max Current
Voltage
Torque
Shaft
Sweep Angles
Sweep Speed
Fuse
SFWM1-0664-01
2.5A
12 V
6Nm
64mm / 2.5″
50°, 65°, 80°, 110°
45 sweeps/min
5A
SFWM2-0664-01
1.2A
24 V
6Nm
64mm / 2.5″
50°, 65°, 80°, 110°
45 sweeps/min
3A

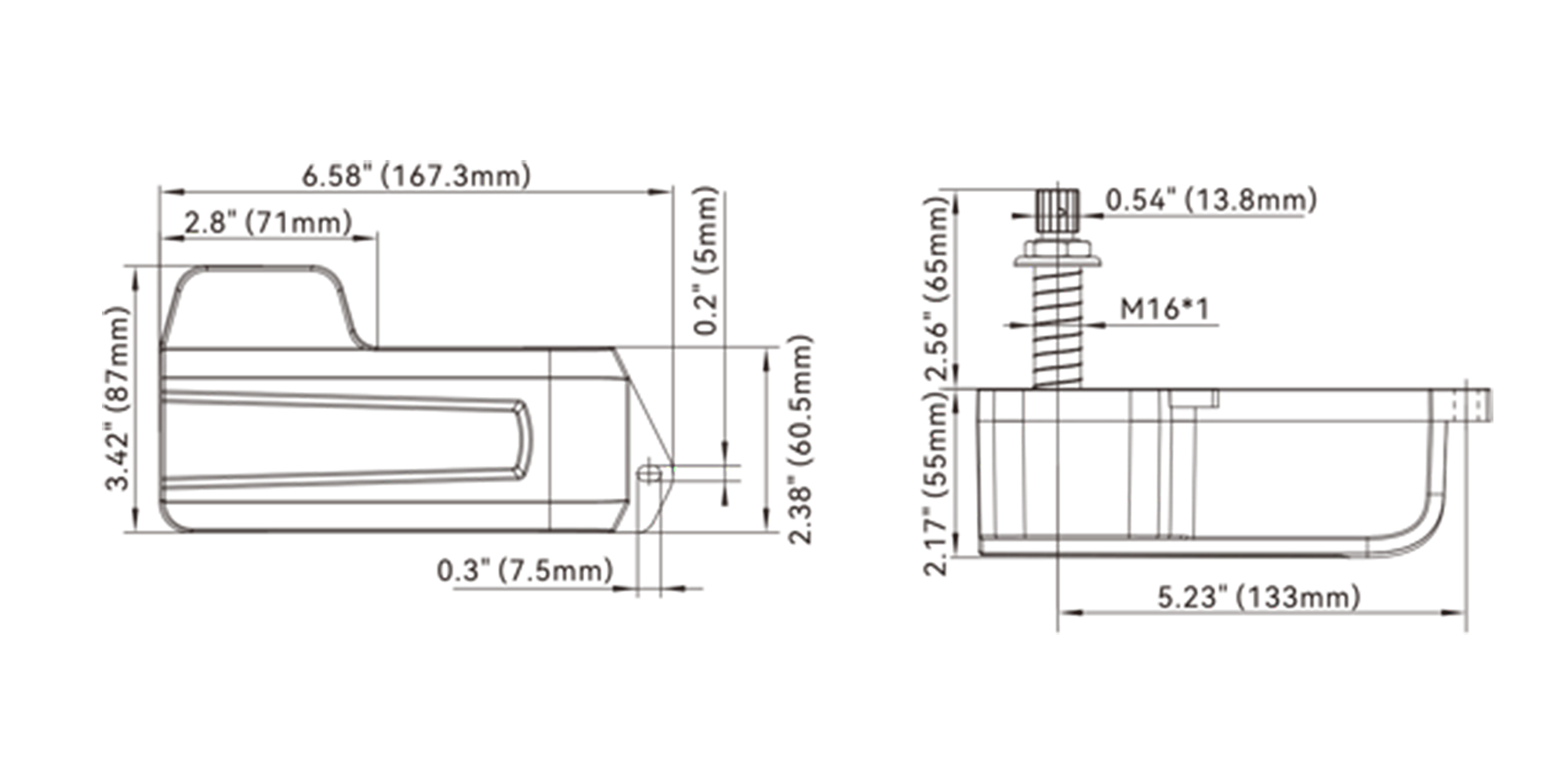

Dimension

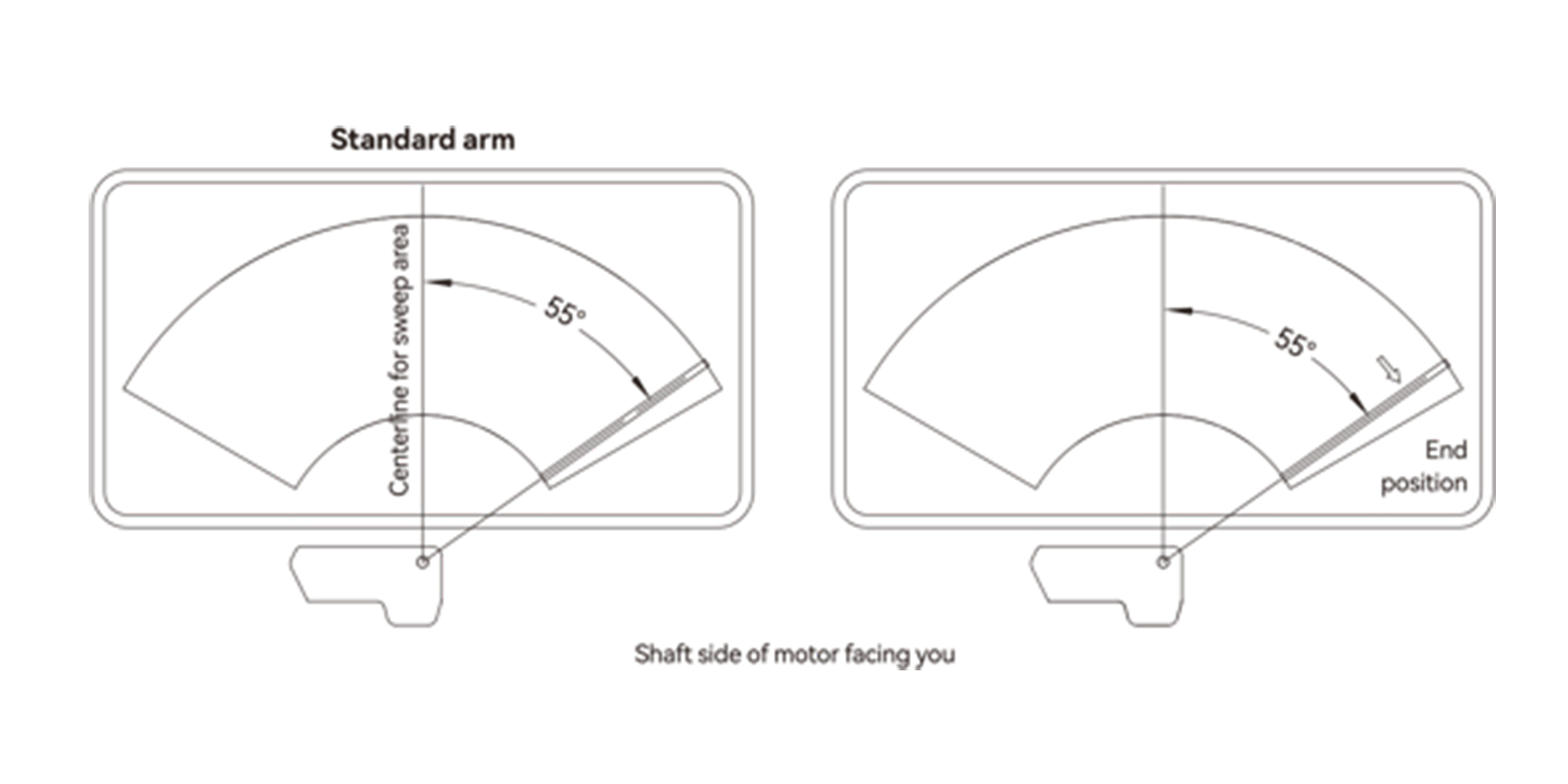

Installation Diagram

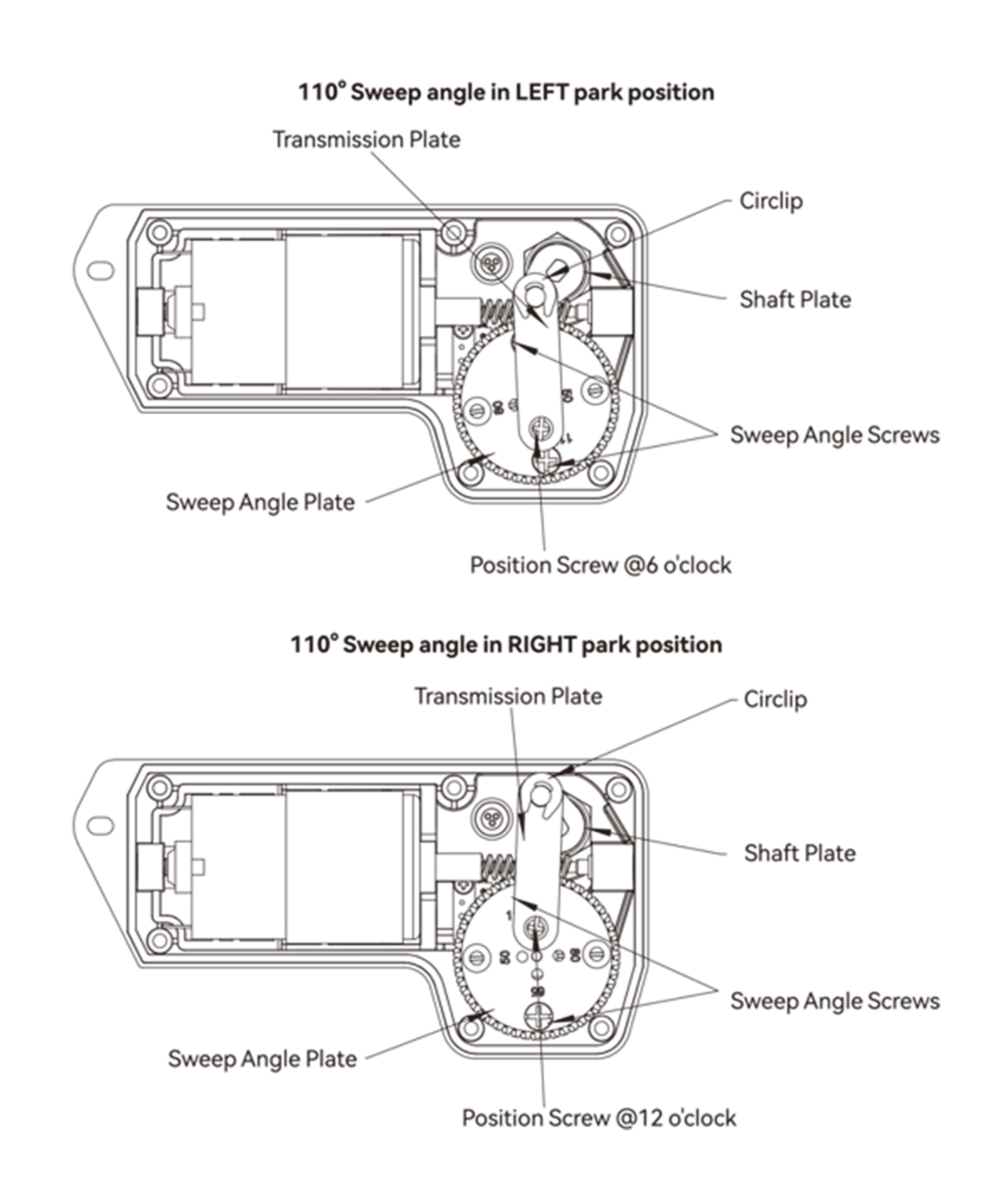

Adjusting the Wiper Angle:

·  Optional angles: 50°, 65°, 80°, 110°.

·  Remove the circlip, position screw, and sweep angle screw.

· Each angle is marked on the sweep angle plate with corresponding holes. Rotate the plate to align the desired angle hole to the "6 o’clock" or "12 o’clock" position. Then, reassemble and securely tighten the removed parts.

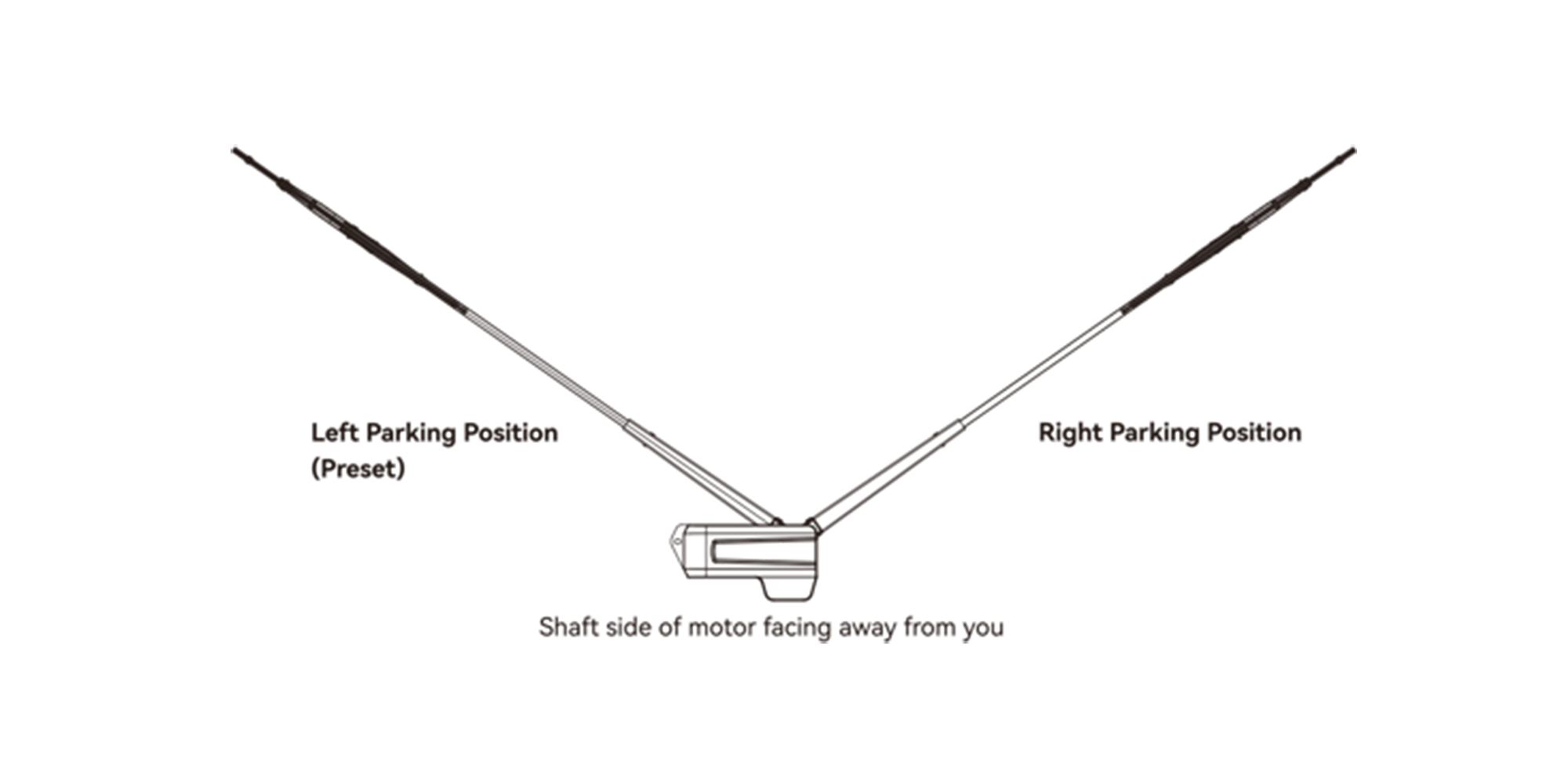

Adjusting the Wiper Park Position:

· For left-side parking, rotate the desired angle hole to the “6 o’clock” position.

· For right-side parking, rotate the desired angle hole to the “12 o’clock” position.
