SEAFLO 56A-Series Variable Speed Smart On-Demand Marine/RV 5-Chamber Diaphragm Water Pressure Pump (5.0 GPM | 70 PSI) (Choose 12V or 24V)

SEAFLO 56A-Series Variable Speed Smart On-Demand Marine/RV 5-Chamber Diaphragm Water Pressure Pump (5.0 GPM | 70 PSI) (Choose 12V or 24V)

SEAFLO
SKU:
SFDP-050-070-56A
|
UPC:
810039492185
$149.99 - $159.99
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

dsf



SEAFLO 12V 56A Series 5.0 Variable Speed Smart On Demand 5-Chamber Diaphragm Pump





Technical Specifications

  • Voltage: 12V
  • Open Flow: 5.0GPM (18.9LPM)
  • Shut-off Pressure: 70 PSI / 4.8 BAR
  • Priming Capabilities: 6 feet (1.8 m) suction lift
  • Max Recommended Temperature: 140° F (60° C) Max.
  • Material: EPDM(Valves) / Santoprene(Diaphragm)
  • Ports: Quick Attach
  • Control Type: Variable Speed Technology
  • Material: EPDM(Valves) / Santoprene(Diaphragm)
  • Max Draw: 10.0 A

About this item

  • Efficient Variable Speed Technology: Enjoy precise control as the motor adjusts its speed dynamically based on water demand.
  • Robust Run-Dry Safety with Long Service Life: Designed for safety, the pump can operate dry without damage, offering an extended service life.
  • Powerful Suction Capability: Strong suction power with a lift of up to 1.8m ensures effective water transfer in diverse marine and RV applications.

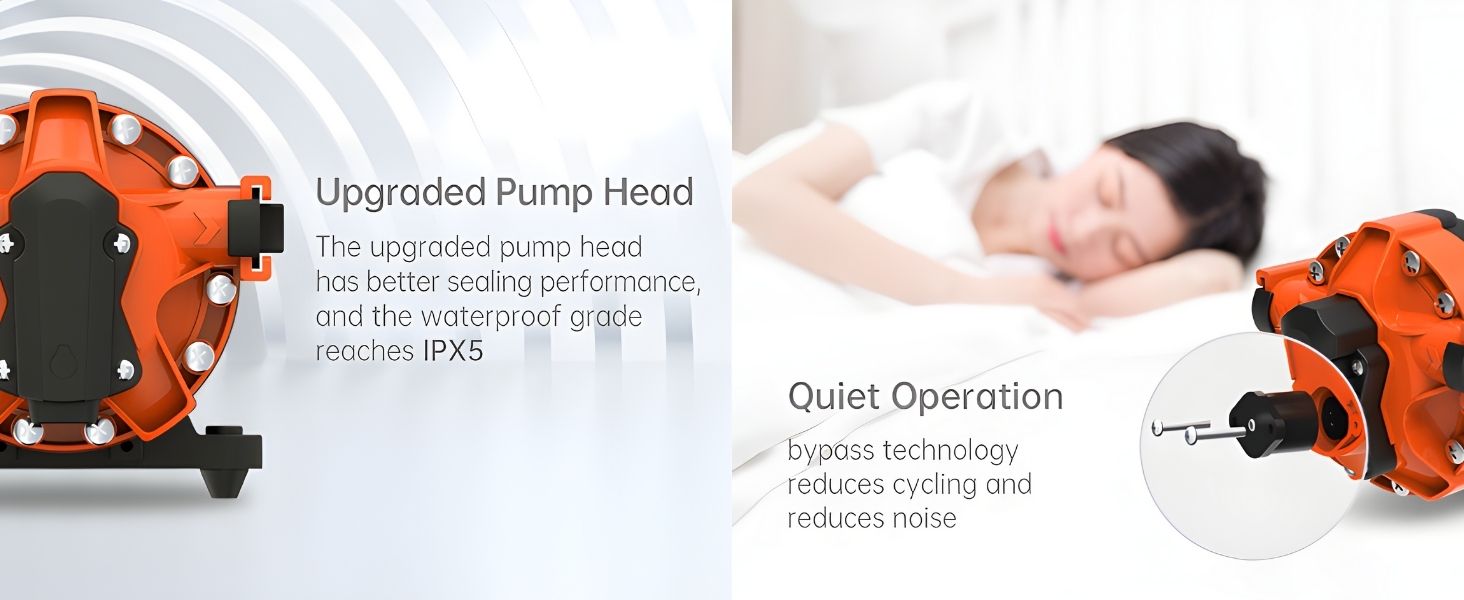

  • Whisper-Quiet Operation with Bypass Technology: Experience a quiet pumping process, thanks to bypass technology that reduces cycling noise.
  • 5-Chamber Diaphragm Pump Stability: Operates with five chambers for enhanced stability and smooth performance, delivering consistent water flow
  • Advanced Control with Variable Speed Technology: The pump belongs to the 56A Series, featuring frequency conversion and inverter pump technologies, ensuring precise control over water pressure.
  • Voltage and Flow Specifications: Voltage: 12V Open Flow: 5.0 GPM (18.9 LPM) Shut-off Pressure: 70 PSI / 4.8 BAR Priming Capabilities: 6 feet (1.8 m) suction lift Max Recommended Temperature: 140°F (60°C) Max
  • High-Quality Construction: Material: EPDM (Valves) / Santoprene (Diaphragm) Ports: Quick Attach
  • Innovative 5-Chamber Models: SEAFLO variable speed pumps come in 5-chamber models, providing constant pressure across multiple outlets through integrated electronic controls.
  • Eliminates the Need for Pressurized Tanks and Switches: The pump's advanced features eliminate the need for additional pressurized tanks and pressure switches.
