SEAFLO Frost Control Valve Frost Protection Anti-frost Valve Frost Prevention Valve
$87.99 - $89.99
(No reviews yet)
Write a Review
SEAFLO Frost Control Valve Frost Protection Anti-frost Valve Frost Prevention Valve
The Frost Control Valve is a currentless drain valve with frost monitoring. It can be used as an accessory for hot water units (boilers or combi boilers), as well as for permanently installed water tanks in caravans and motorhomes.
Features and Benefits
- Manual drain valve
- Frost monitor

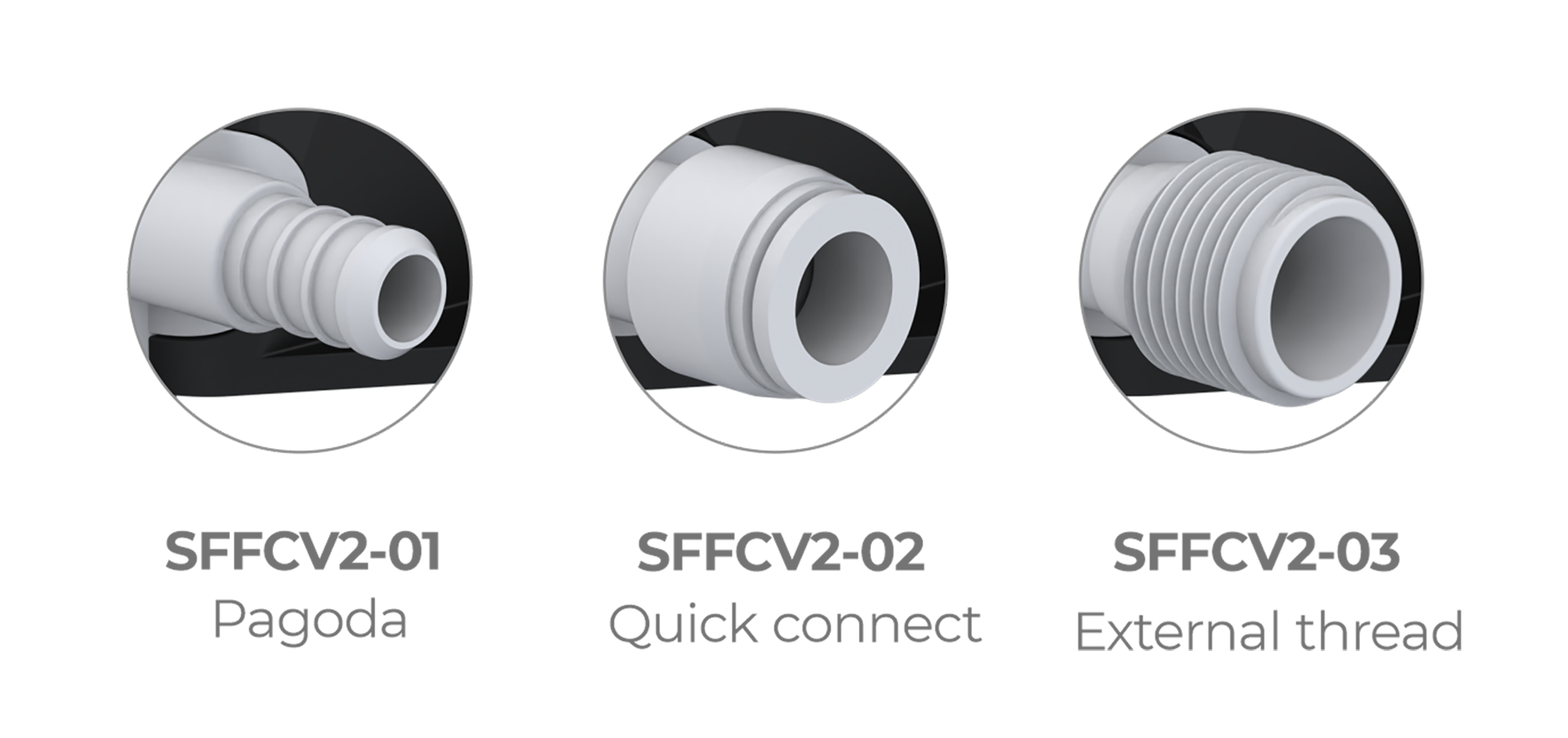

- Available in 3 connector types
- Reliable performance
- Easy to install and use
- High-quality materials
Technical parameters
Model |
Closing temperature |
Opening temperature |
Operating temperature |
Connection |
SFFCV2-01 |
over approx. 7 °C (ambient temperature) |
below approx. 3 °C (ambient temperature) |
-30°C – +70°C |
Ø 12 mm hose connection |
SFFCV2-02 |
over approx. 7 °C (ambient temperature) |
below approx. 3 °C (ambient temperature) |
-30°C – +70°C |
Ø 12 mm fixed pipe connection |
SFFCV2-03 |
over approx. 7 °C (ambient temperature) |
below approx. 3 °C (ambient temperature) |
-30°C – +70°C |
1/2”NPT connectors connection |
Operation diagram
Operating instructions
1 = Push switch position “Operation”
2 = Pushbutton position “Drain”
3 = Pushbutton position “Closed”
4 = Drainage socket (routed outside through floor of vehicle)

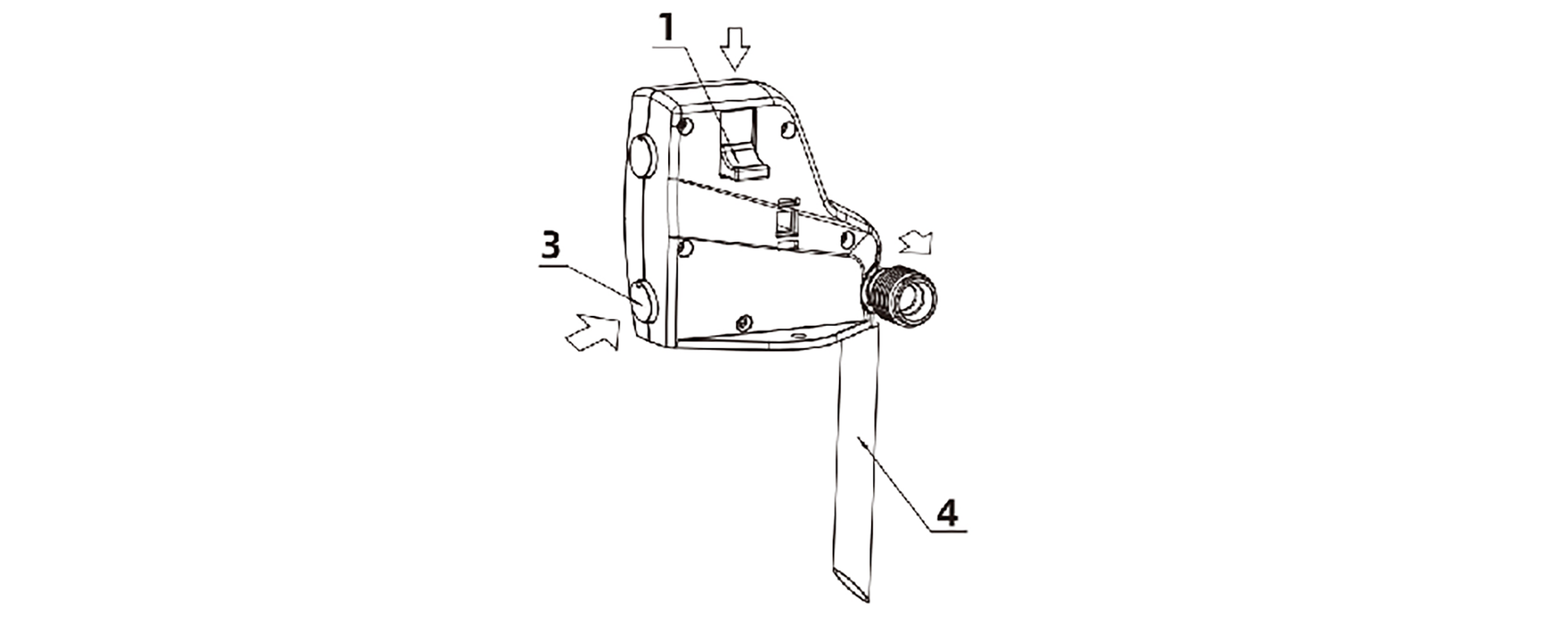

Start working status & Closing the drain valve & Fill the boiler (water tank)
- Check whether the Push switch (Position 1) is set to “Operation” and is engaged.
- Close the drain valve by pressing the pushbutton (Position 3).
- The pushbutton must engage in the “closed”.
- Only when the temperature at the drain valve is above approx. 7 °C can it be closed manually with the pushbutton (Position 3) and the boiler be filled.

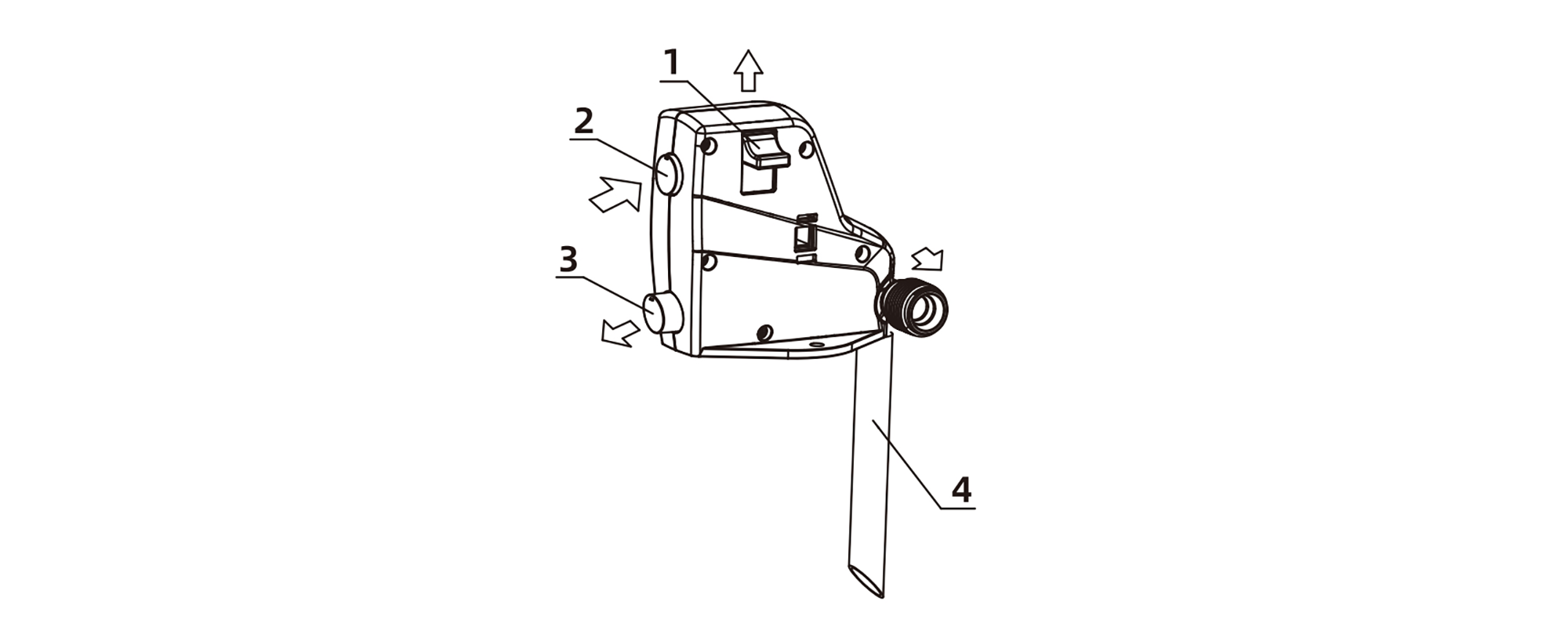

Manual drain valve opening
Open the drain valve by pressing the pushbutton (Position 2),whereby the Push switch and pushbutton pops out (Position 1 and Position 3). The water from the boiler drains out through the drainage socket (4).

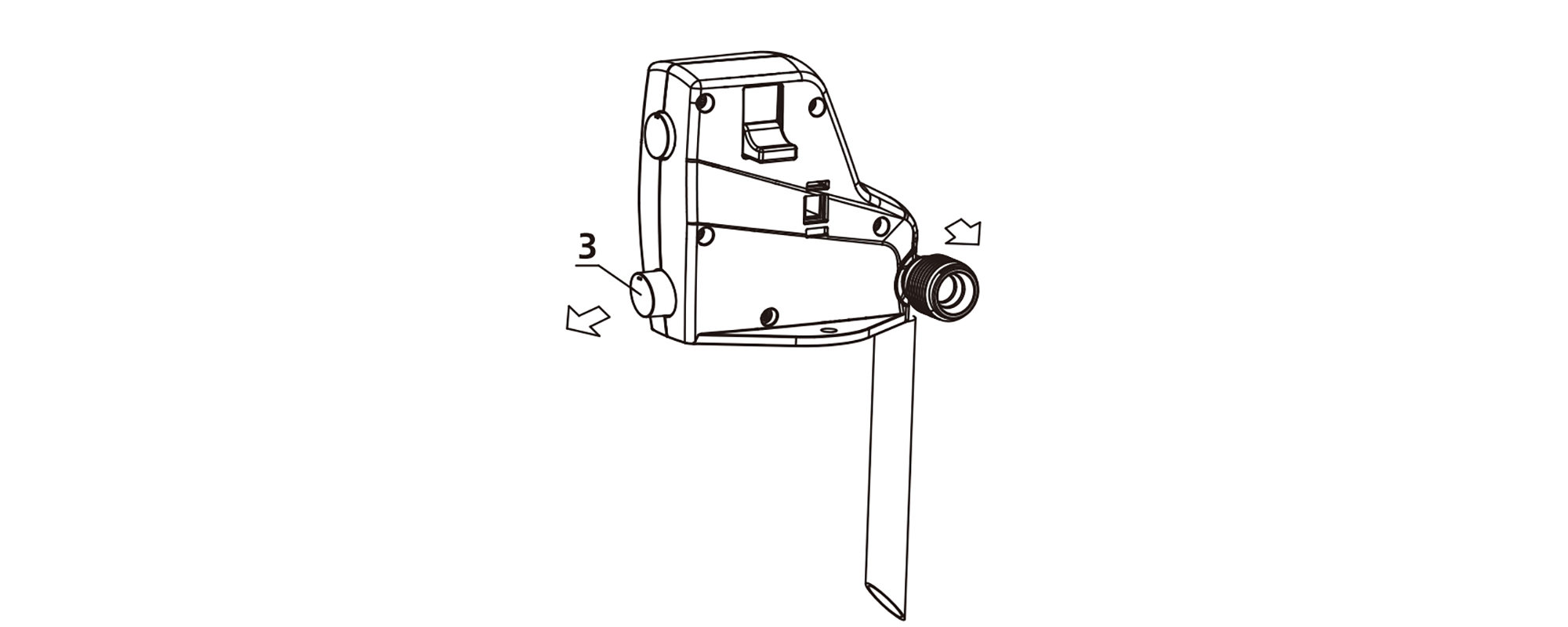

Automatic opening of the drain valve
If the temperature at the drain valve is below about 3 °C, it opens automatically and the push button pops out (Position 3). The water from the boiler drains out through the drainage socket (4).

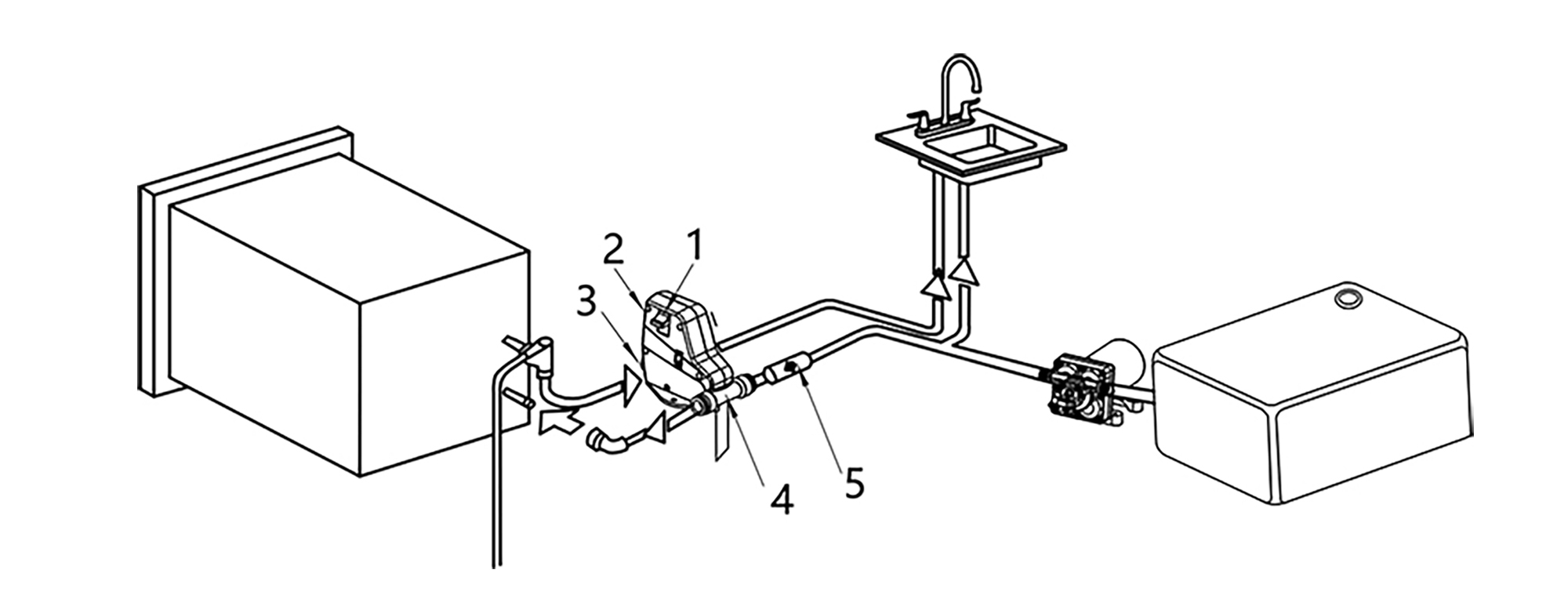

Application diagram
Installation example:
1 = Push switch
2 = Pushbutton
3 = Pushbutton
4 = Frost Control Valve (Safety/drain valve)
5 = Non-return valve (not included)
Dimension
