SEAFLO 03-Series Heavy Duty Bilge Pump Float Switch for 12V, 24V, or 32V

SEAFLO 03-Series Heavy Duty Bilge Pump Float Switch for 12V, 24V, or 32V

SEAFLO
SKU:
SFBS-25-03A
$19.99
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

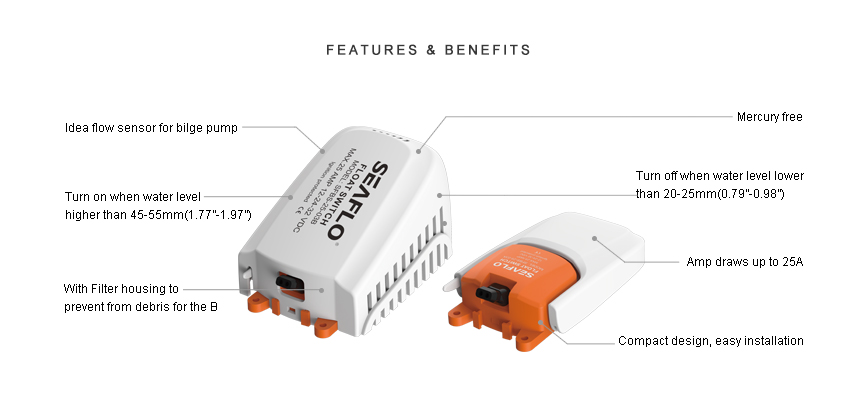

03float switchE.jpg

MORE FEATURES & BENEFITS

•  Larger float and drive structure for better stability

•  Amp draws up to 25 A

•  Idea flow sensor for bilge pump

•  Mercury free

•  Compact design, easy installation

•  Strainer housing protects switch from debris

•  Turn on when water level higher than 45-55 mm(1.77''-1.97'')

•  Turn off when water level lower than 20-25 mm(0.79''-0.98'')



STANDARD CONFIGURATIONS

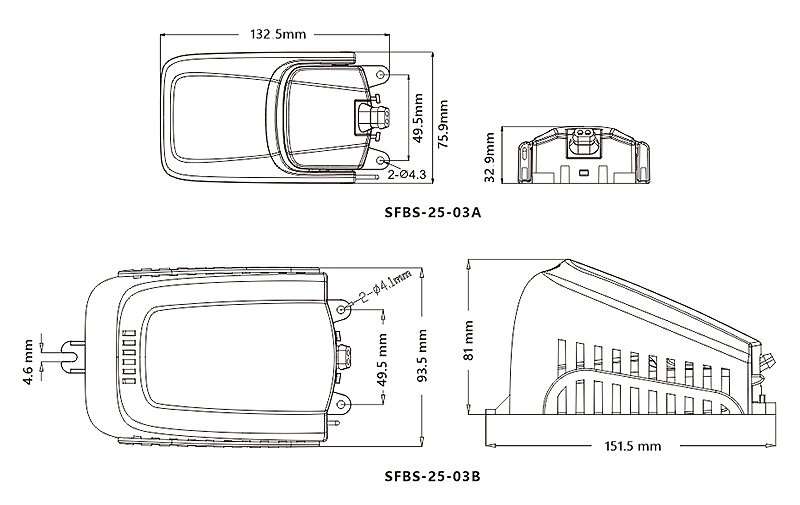

Model Max Amps 12Volts Filter Housing Wire Lead Wire Gauge Size N.W.
SFBS-25-03A
25 A
NO
1 M
14AWG
120 g
SFBS-25-03B
 25 A
 YES
 1 M
 14AWG
 190 g







SHIPPING INFORMATION

A section

Unit Weight

0.31 lbs (0.14 kg)

Master Carton Size (L x W x H)

 20.87" x 17.52"x 12.99"
(53 x 44.5 x 33 cm)

Master Carton Qty

 60 pcs

Master Carton Weight

26.46 lbs (12 kg)

Master Carton Volume

 0.078 m³





B section

Unit Weight

0.49 lbs (0.22 kg)

Master Carton Size (L x W x H)

 24.37"x 12.95"x 11.81"
(61.9 x 32.9 x 30 cm)

Master Carton Qty

 30 pcs

Master Carton Weight

20.28 lbs (9.2 kg)

Master Carton Volume

 0.061 m³
