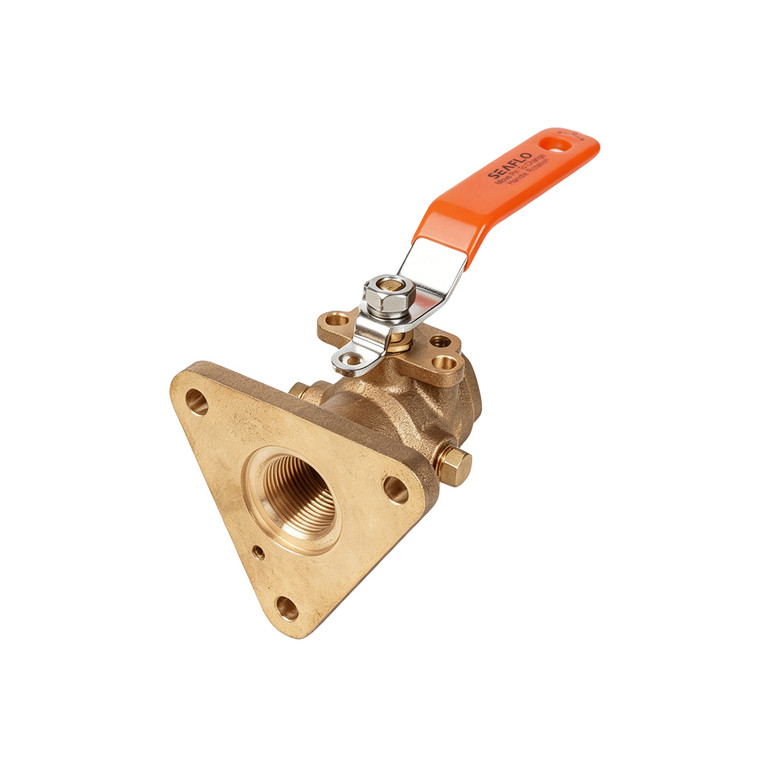

Bronze In-Line Ball Valve 03 Series
SEAFLO
$58.04 - $91.08
(No reviews yet)
Write a Review
SEAFLO
Bronze In-Line Ball Valve 03 Series
Features & Benefits
NPT or BSPP threaded ports
Handle has a square hole designed to accept a standard ratchet
Full-flow design, 400 WOG rated Base has bonding attachment
Pin hole for locking or securing handle
Triangular base with bolt pattern to match most popular brands makes retrofit easy
|
Model |
Top Thread |
Bottom Thread |
A inch/mm |
B inch/mm |
C inch/mm |
D inch/mm |
E inch/mm |
F inch/mm |
|
SFBV-750N-04 |
3/4" NPT |
3/4" NPSM |
3.09" (78.5mm) |
4.29" (109mm) |
3.11" (79mm) |
6.22" (158.14mm) |
Ø3.12" (79.2mm) |
Ø3.9" (99.25mm) |
|
SFBV-1000N-04 |
1" NPT |
1" NPSM |
3.5" (89mm) |
4.7" (119.5mm) |
3.5" (89mm) |
6.77" (172mm) |
Ø3.38" (85.8mm) |
Ø4.17" (85.8mm) |
|
SFBV-1250N-04 |
1-1/4" NPT |
1-1/4" NPSM |
3.96" (100.6mm) |
5" (127.5mm) |
4.07" (103.5mm) |
7.28" (185.1mm) |
Ø3.62" (91.9mm) |
Ø4.4" (111.95mm) |
|
SFBV-750B-04 |
3/4" BSPP |
3/4" BSPP |
3.09" (78.5mm) |
4.29" (109mm) |
3.11" (79mm) |
6.22" (158.14mm) |
Ø3.12" (79.2mm) |
Ø3.9" (99.25mm) |
|
SFBV-1000B-04 |
1" BSPP |
1" BSPP |
3.5" (89mm) |
4.7" (119.5mm) |
3.5" (89mm) |
6.77" (172mm) |
Ø3.38" (85.8mm) |
Ø4.17" (85.8mm) |
|
SFBV-1250B-04 |
1-1/4" BSPP |
1-1/4" BSPP |
3.96" (100.6mm) |
5" (127.5mm) |
4.07" (103.5mm) |
7.28" (185.1mm) |
Ø3.62" (91.9mm) |
Ø4.4" (111.95mm) |
